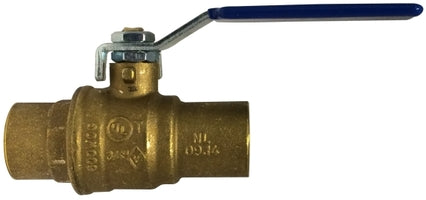

940214LF (940-214LF) Midland Lead Free Ball Valve - Forged - 1" SWT x 1" SWT - Brass

940214LF by Midland | Lead Free Ball Valve | Forged | 1" SWT x 1" SWT | Brass

Save $2.20 Save $2.20
$30.92
$30.92 - $30.92
$30.92
$28.72
$28.72 - $28.72
$28.72

Midland Industries
Italian Lead Free Ball Valve - Forged - SWT x SWT - Brass

Made In Italy.

600 PSI non-shock cold water, gas, oil - 150 PSI saturated steam.

ISO 9002 Manufacturer.

Inventory @ Manufacturers Warehouse: 13 Units
Specifications for Variant SKU: 940214LF Midland
Shape (Orientation): Straight
Ends Configuration: 1in Sweat End, 1in Sweat End
Material(s): Lead Free Brass
Applicable Specs & Approvals: CSA AGA 3.88, UL842, UL258, UL125, FM, NSF 61, Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free
Features:
  • Suitable for full range of liquids and gases.
  • Minimal pressure drop due to large full size ports.
  • Bottom loaded, pressure retaining stem.
  • Pressure rated at 600psi (42 bars) WOG (non-shock) and 150 WSP (10.34 bars) saturated steam. Virgin TFE stem packing seal, thrust washer and seats.
  • Fast 1/4 turn open or close operation.
  • Low operating torque.
  • Flow can go both directions.
  • Adjustable stem packing gland.
  • Maximum operating temerature: 2480F (1200 C) at 600 PSI.
  • Minimum operating temperature: -200F (-400C).
  • Each valve individually tested.
  • Threaded ends to ANSI B1.20.1.
  • Bottom entry, blow-out proof stem.
  • Deeper threads - for better connections.
  • Lead Free Lead Free Info (PDF)
Construction:
  • Solid Chrome Plated Brass Ball.
  • Blue vinyl insulator on heavy duty plated carbon steel handles.
  • Forged Brass - for more strength.
  • Hard chromium plated solid ball.
  • ANSI/INSF 61-8 Generic Handles.
Specifications:
  • CSA AGA 3.88 5 PSIG
  • IAMPO IGC 157 - 2004b
  • UL842, UL258, UL125, FM
Number Components Materials
1 Body CW510L
2 End Connection CW510L
3 Ball Seal PTFE
4 Seal CW510L
5 Stem CW614N
6 Lower Stem PTFE
7 O-Ring NBR70sh
8 Upper Seal PTFE
9 Brass Ring CW614N
10 Nut Steel
11 Handle Steel P10
Part Number SWT Ø DN A B C D CH Weight
940212LF
(940-212LF)		 1/2" 0.63" 0.57" 2.40" 1.57" 3.35" 0.42" 0.79" 0.35
940213LF
(940-213LF)		 3/4" 0.866" 0.75" 3.26" 1.77" 3.80" 0.61" 1.06" 0.55
940214LF
(940-214LF)		 1" 1.102" 0.94" 3.68" 2.03" 3.80" 0.73" 1.34" 0.87
940215LF
(940-215LF)		 1-1/4" 1.377" 1.24" 4.23" 2.32" 4.72" 0.91" 1.61" 1.41
940216LF
(940-216LF)		 1-1/2" 1.61" 1.49" 4.96" 2.60" 4.72" 1.06" 1.89" 2.08
