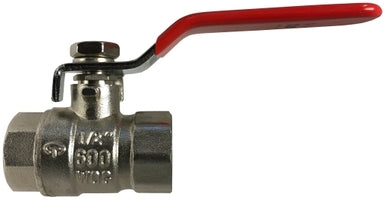

941155NP by Midland | Full Port Ball Valve | 1" Female Pipe x 1" Female Pipe | Straight | Nickel Plated Brass

941155NP by Midland | Full Port Ball Valve | 1" Female Pipe x 1" Female Pipe | Straight | Nickel Plated Brass

Save $19.41 Save $19.41
$48.53
$48.53 - $48.53
$48.53
$29.12
$29.12 - $29.12
$29.12

Midland Industries
Full Port Ball Valve - Female Pipe x Female Pipe - Nickel Plated Brass

600 WOG

No Approvals

Inventory @ Manufacturers Warehouse: 44 Units
Specifications for Variant SKU: 941155NP Midland
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Nickel Plated Brass
Features:
  • Vacuum service to 29 inches Hg
  • 600 psi (WOG) 150 psi (WSP) Service
  • Temperature Range : -40° F to 365° F
  • Not Lead Free
  • Generic Handles
Construction:
  • Thread conform ANSI B1.20.1
  • Forging Brass Body, Nickel plated
  • PTFE Ball Seats
  • Blow Out Proof Brass Stem
  • Steel Handle w/Vinyl Grip
  • Made in China
Number Item Quantity Material
1 Body 1 NP Brass
2 Seat 2 PTFE
3 Ball 1 Brass CP
4 Stem 1 Brass/ NP
5 Handle Nut 1 Plated Steel
6 Lock Washer 1 Plated Steel
7 Packing Nut 1 Brass/ NP
8 Packing 1 PTFE
Part Number Size OD A B C E F G H Weight
941151NP 1/4" 0.394" 1.73" 1.69" 3.35" 0.453" 0.945" 2.154" 4.331" 0.32 lbs
941152NP 3/8" 0.394" 1.73" 1.69" 3.35" 0.473" 0.945" 2.154" 4.331" 0.32 lbs
941153NP 1/2" 0.524" 1.89" 1.73" 3.35" 0.472" 1.083" 2.276" 4.291" 0.36 lbs
941154NP 3/4" 0.748" 2.28" 1.89" 3.35" 0.563" 1.378" 2.579" 4.488" 0.57 lbs
941155NP 1" 0.984" 2.80" 2.14" 4.29" 0.650" 1.772" 3.031" 5.689" 0.65 lbs
941156NP 1-1/4" 1.240" 3.15" 2.32" 4.29" 0.669" 2.165" 3.398" 5.866" 1.75 lbs
941157NP 1-1/2" 1.476" 3.44" 2.66" 5.63" 0.701" 2.50" 3.909" 7.343" 2.10 lbs
941158NP 2" 1.949" 4.06" 3.01" 5.63" 0.708" 3.244" 4.638" 7.638" 3.35 lbs
