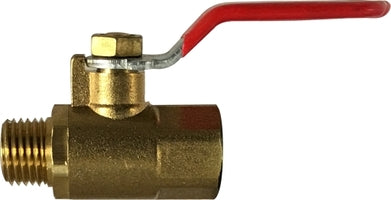

944104 (944-104) by Midland | Forged Mini Ball Valve | 1/2" Female Pipe x 1/2" Male Pipe | Straight | Brass

Name: 944104 (944-104) by Midland | Forged Mini Ball Valve | 1/2" Female Pipe x 1/2" Male Pipe | Straight | Brass
Brand: Midland Industries
SKU: 944104 Midland
Price: 6.08 USD
Availability: InStock

Save $4.05

$10.13

$10.13 - $10.13

$10.13

$6.08

$6.08 - $6.08

$6.08

Midland Industries
Forged Mini Ball Valve - Female Pipe x Male Pipe - Brass

200 WOG working pressure

Inventory @ Manufacturers Warehouse: 395 Units

Specifications for Variant SKU: 944104 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 1/2in Male NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	NBR

Features:
Temp rating: -20°F - 250°F Generic Handles Not lead free
Construction:
180° operational handle Blow out proof stem Stem with double "O" Rings

Number	Part Name	Material	QTY
1	Nut	Steel	1
2	Handle	Steel	1
3	Cover	PVC	1
4	O-Ring	NBR	2
5	Stem	Brass	1
6	Body	Brass	1
7	Seat	Teflon	2
8	Ball Disc	Brass	1
9	End Plug	Brass	1


Part Number	Size	A	B	C	D
944106 (944-106)	1/8" x 1/8"	1.69"	3.02"	0.73"	1.46"
944100 (944-100)	1/4" x 1/8"	1.28"	2.90"	0.66"	1.32"
944101 (944-101)	1/4" x 1/4"	1.70"	3.00"	0.73"	1.46"
944103 (944-103)	3/8" x 3/8"	1.78"	3.02"	0.87"	1.50"
944102 (944-102)	3/8" x 1/4"	1.78"	2.50"	0.89"	1.50"
944104 (944-104)	1/2" x 1/2"	-	-	-	-

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
