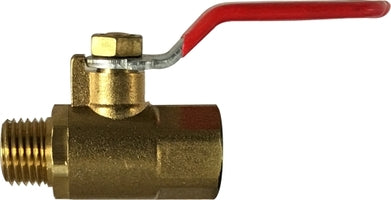

944106 (944-106) Midland Forged Mini Ball Valve - 1/8" Female Pipe x 1/8" Male Pipe - Brass

944106 by Midland | Forged Mini Ball Valve | 1/8" Female Pipe x 1/8" Male Pipe | Brass

Save $1.01 Save $1.01
$14.14
$14.14 - $14.14
$14.14
$13.13
$13.13 - $13.13
$13.13

Midland Industries
Forged Mini Ball Valve - Female Pipe x Male Pipe - Brass

200 WOG working pressure
Specifications for Variant SKU: 944106 Midland
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPT, 1/8in Male NPT
Material(s): Brass
Seal Material(s): NBR
Features:
  • Temp rating: -20°F - 250°F
  • Generic Handles
  • Not lead free
Construction:
  • 180° operational handle
  • Blow out proof stem
  • Stem with double "O" Rings
Number Part Name Material QTY
1 Nut Steel 1
2 Handle Steel 1
3 Cover PVC 1
4 O-Ring NBR 2
5 Stem Brass 1
6 Body Brass 1
7 Seat Teflon 2
8 Ball Disc Brass 1
9 End Plug Brass 1
Part Number Size A B C D
944106
(944-106)		 1/8" x 1/8" 1.69" 3.02" 0.73" 1.46"
944100
(944-100)		 1/4" x 1/8" 1.28" 2.90" 0.66" 1.32"
944101
(944-101)		 1/4" x 1/4" 1.70" 3.00" 0.73" 1.46"
944103
(944-103)		 3/8" x 3/8" 1.78" 3.02" 0.87" 1.50"
944102
(944-102)		 3/8" x 1/4" 1.78" 2.50" 0.89" 1.50"
944104
(944-104)		 1/2" x 1/2" - - - -
