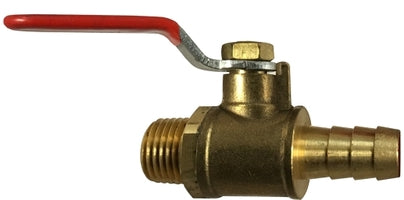

944128 (944-128) Midland Forged Mini Ball Valve - 3/8" Hose Barb x 1/4" Male Pipe - Brass

944128 by Midland | Forged Mini Ball Valve | 3/8" Hose Barb x 1/4" Male Pipe | Brass

Save $0.66 Save $0.66
$9.18
$9.18 - $9.18
$9.18
$8.52
$8.52 - $8.52
$8.52

Midland Industries
Forged Mini Ball Valve - Hose Barb x Male Pipe - Brass

200 WOG working pressure

Inventory @ Manufacturers Warehouse: 395 Units
Specifications for Variant SKU: 944128 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Male NPT
Material(s): Brass
Seal Material(s): NBR
Features:
  • Temp rating: -20°F - 250°F
  • Generic Handles
  • Not lead free
Construction:
  • 180° operational handle
  • Blow out proof stem
  • Stem with double "O" Rings
Number Part Name Material QTY
1 Nut Steel 1
2 Handle Steel 1
3 Cover PVC 1
4 O-Ring NBR 2
5 Stem Brass 1
6 Body Brass 1
7 Seat Teflon 2
8 Ball Disc Brass 1
9 End Plug Brass 1
Part Number Size A B C D
944132
(944-132)		 1/4" x 1/8" 2.05" 2.91" 0.73" 1.51"
944138
(944-138)		 1/4" x 1/4" 2.08" 2.98" 0.73" 1.51"
944128
(944-128)		 3/8" x 1/4" 2.08" 3.04" 0.73" 1.51"
944130
(944-130)		 3/8" x 3/8" 2.12" 3.06" 0.73" 1.51"
944139
(944-139)		 1/2" x 1/2" 2.15" 3.19" 0.73" 1.51"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
