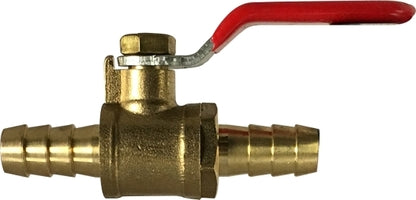

944134 (944-134) Midland Forged Mini Ball Valve - 3/8" Hose Barb x 3/8" Hose Barb - Brass

944134 by Midland | Forged Mini Ball Valve | 3/8" Hose Barb x 3/8" Hose Barb | Brass

Save $7.88 Save $7.88
$19.70
$19.70 - $19.70
$19.70
$11.82
$11.82 - $11.82
$11.82

Midland Industries
Forged Mini Ball Valve - Hose Barb x Hose Barb - Brass

200 WOG working pressure

Inventory @ Manufacturers Warehouse: 755 Units
Specifications for Variant SKU: 944134 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/8in Hose Barb, Some Ends Match
Material(s): Brass
Seal Material(s): NBR
Features:
  • Temp rating: -20°F - 250°F
  • Generic Handles
  • Not lead free
Construction:
  • 180° operational handle
  • Blow out proof stem
  • Stem with double "O" Rings
Number Part Name Material QTY
1 Nut Steel 1
2 Handle Steel 1
3 Cover PVC 1
4 O-Ring NBR 2
5 Stem Brass 1
6 Body Brass 1
7 Seat Teflon 2
8 Ball Disc Brass 1
9 End Plug Brass 1
Part Number Size A B C D
944142
(944-142)		 1/4" x 1/4" 2.47" 3.19" 0.73" 1.55"
944134
(944-134)		 3/8" x 3/8" 2.47" 3.18" 0.73" 1.55"
