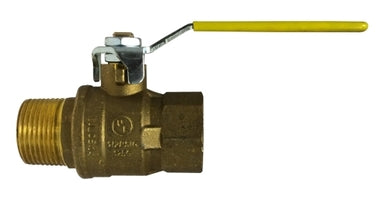

948104 (948-104) Midland Full Port Italian Ball Valve - 3/4" Male NPT x 3/4" Female NPT - Brass

948104 by Midland | Full Port Italian Ball Valve | 3/4" Male NPT x 3/4" Female NPT | Brass

Save $1.43 Save $1.43
$20.16
$20.16 - $20.16
$20.16
$18.73
$18.73 - $18.73
$18.73

Midland Industries
Full Port Italian Ball Valve - Male Pipe x Female Pipe - Brass

600 WOG

ISO 9002 Manufacturer

Inventory @ Manufacturers Warehouse: 934 Units
Specifications for Variant SKU: 948104 Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 3/4in Female NPT
Material(s): Brass
Seal Material(s): NBR
Applicable Specs & Approvals: AGA 3.88, UL842, UL258, UL125, FM
Features:
  • Solid chrome plated brass ball
  • Suitable for full range of liquids and gases.
  • Minimal pressure drop due to large full size ports.
  • Bottom loaded, pressure retaining stem.
  • Pressure rated at 600 PSI (42 bars) WOG (non-shock) and 150 PSI (10.34 bars) saturated steam.
  • Fast 1/4 turn open or close operation.
  • Generic Handles
  • Flow both directions.
  • Low operating torque.
  • Adjustable stem packing gland.
  • Maximum operating temperature: 248°F (120°C) at 600 PSI
  • Minimum operating temperature: -20°F (-40°C)
  • KV: Pressure drop m^3/h.
  • Each valve individually tested
  • Bottom entry, blow-out proof stem
  • Deeper threads - for better connections
  • Not Lead Free
Construction:
  • Virgin TFE stem packing seal, thrust washer and seats.
  • Yellow vinyl insulator on heavy duty plated carbon steel handles.
  • Forged Brass - for more strength
  • Hard chromium plated solid ball
  • Made in Italy
Specifications:
  • Gas Approved
  • CSA AGA 3.88 5 PSIG
  • UL842, UL258, UL125, FM
  • Threaded ends to ANSI B1.20.1
Part Number Components Materials N
1 Body CW617N Forged Brass 1
2 End Connection CW617N Forged Brass 1
3 Ball CW617N CP Brass 1
4 Ball Stems PTFE 2
5 Stem Antif. Seat PTFE 1
6 Stem Seat PTFE 1
7 Brass Ring CW617N Brass 1
8 Stem CW617N Brass 1
9 O-Ring NBR 80 1
10 Handle UNI EN 10025 Steel 1
11 Nut UN 5771 Steel 1
12 Nut CW617N Brass 1
Part Number Size DN A B C E E1 CH1 CH2 Weight
948101
(948-101)		 1/4" 0.39 2.18" 1.53" 3.28" 0.39" 0.43" 0.55" 0.75" 0.35
948102
(948-102)		 3/8" 0.39 2.20" 1.53" 3.28" 0.43" 0.43" 0.71" 0.86" 0.35
948103
(948-103)		 1/2" 0.57 2.54" 1.57" 3.28" 0.62" 0.46" 0.87" 0.98" 0.42
948104
(948-104)		 3/4" 0.75 2.75" 1.77" 3.80" 0.55" 0.49" 1.12" 1.22" 0.68
948105
(948-105)		 1" 0.94 3.23" 2.03" 3.80" 0.69" 0.59" 1.34" 1.50" 0.95
948106
(948-106)		 1-1/4" 1.24 3.86" 2.32" 4.63" 0.81" 0.79" 1.69" 1.90" 1.66
948107
(948-107)		 1-1/2" 1.49 4.20" 2.98" 6.28" 0.85" 0.64" 2.15" 2.13" 2.83
948108
(948-108)		 2" 1.96 4.90" 3.27" 6.38" 0.90" 0.75" 2.40" 2.64" 4.22
