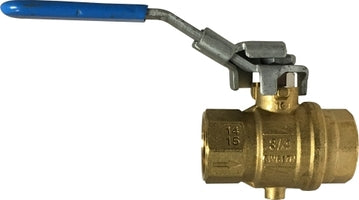

948133 (948-133) Midland Full Port Forged Exhaust Valve - Automatic Drain & Latch Lock Handle - 1/2" Female Thread x 1/2" Female Thread - Brass

948133 by Midland | Full Port Forged Exhaust Valve | Automatic Drain & Latch Lock Handle | 1/2" Female Thread x 1/2" Female Thread | Brass

Save $36.51 Save $36.51
$91.27
$91.27 - $91.27
$91.27
$54.76
$54.76 - $54.76
$54.76

Midland Industries
Full Port Forged Exhaust Valve - Automatic Drain & Latch Lock Handle - Female Thread x Female Thread - Brass

200 PSI

In compliance with OSHA requirements

Inventory @ Manufacturers Warehouse: 33 Units
Specifications for Variant SKU: 948133 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • With 10/32 UNP tap for drain.
  • Full port
  • Downstream automatic vent with lockable handle in compliance with OSHA requirements.
  • Maximum working pressure: 200 PSI (CWP).
  • Temperature rating: +15°F through +210°F.
  • Not lead free
Construction:
  • Hot forged brass ball valve
  • Blow-out proof stem
Note:
  • Valve - open position. Drain vent shut off.
  • Valve - closed and draining occurs.
  • Upstream seat prevents air flow. Downstream system is vented to atmosphere.
Part Number Size
948131
(948-131)		 1/4"
948132
(948-132)		 3/8"
948133
(948-133)		 1/2"
948134
(948-134)		 3/4"
948135
(948-135)		 1"
