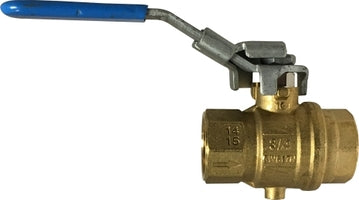

948134 (948-134) Midland Full Port Forged Exhaust Valve - Automatic Drain & Latch Lock Handle - 3/4" Female Thread x 3/4" Female Thread - Brass

948134 by Midland | Full Port Forged Exhaust Valve | Automatic Drain & Latch Lock Handle | 3/4" Female Thread x 3/4" Female Thread | Brass

Save $14.55 Save $14.55
$93.51
$93.51 - $93.51
$93.51
$78.96
$78.96 - $78.96
$78.96

Midland Industries
Full Port Forged Exhaust Valve - Automatic Drain & Latch Lock Handle - Female Thread x Female Thread - Brass

200 PSI

In compliance with OSHA requirements

Inventory @ Manufacturers Warehouse: 30 Units
Specifications for Variant SKU: 948134 Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • With 10/32 UNP tap for drain.
  • Full port
  • Downstream automatic vent with lockable handle in compliance with OSHA requirements.
  • Maximum working pressure: 200 PSI (CWP).
  • Temperature rating: +15°F through +210°F.
  • Not lead free
Construction:
  • Hot forged brass ball valve
  • Blow-out proof stem
Note:
  • Valve - open position. Drain vent shut off.
  • Valve - closed and draining occurs.
  • Upstream seat prevents air flow. Downstream system is vented to atmosphere.
Part Number Size
948131
(948-131)		 1/4"
948132
(948-132)		 3/8"
948133
(948-133)		 1/2"
948134
(948-134)		 3/4"
948135
(948-135)		 1"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
