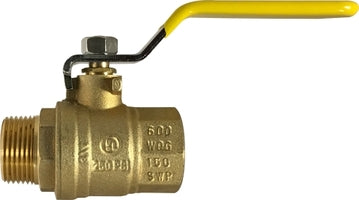

948170 (948-170) Midland Full Port Ball Valve - 1/4" Male NPT x 1/4" Female NPT - Brass

948170 by Midland | Full Port Ball Valve | 1/4" Male NPT x 1/4" Female NPT | Brass

Save $5.56 Save $5.56
$13.90
$13.90 - $13.90
$13.90
$8.34
$8.34 - $8.34
$8.34

Midland Industries
Full Port Ball Valve - Male NPT x Female NPT - Brass

600 WOG

Inventory @ Manufacturers Warehouse: 2226 Units
Specifications for Variant SKU: 948170 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Female NPT
Material(s): Brass
Applicable Specs & Approvals: UL842, UL258
Features:
  • Suitable for full range of liquids and gases.
  • Minimal pressure drop due to large full size ports.
  • Bottom loaded, pressure retaining stem.
  • Pressure rated at 600 PSI (42 bars) WOG (nonshock), and 150 PSI (10.34 bars) saturated steam.
  • Fast 1/4 turn open or close operation.
  • Flow both directions
  • Low operating torque.
  • Adjustable stem packing gland.
  • Generic Handles
  • Maximum operating temperature: 248°F (120°C)
  • Minimum operating temperature: -20°F (-40°C)
  • Each valve individually tested.
  • Not Lead Free
Construction:
  • Solid chrome plated brass ball
  • Virgin TFE stem packing seal, thrust washer and seats.
  • Yellow vinyl insulator on heavy duty plated carbon steel handles.
  • Forged Brass - for more strength.
  • Hard chromium plated solid ball
Specifications:
  • UL842, UL258
  • Threaded ends to ANSI B1.20.1
Part Number Components Materials
1 Body C37700
2 End Cap CS7700
3 Ball Seat PTFE
4 Ball CS7700
5 Stem CS7700
6 Stem Reducing PTFE
7 Reducing Nut CS7700
8 Lever Handle 1008
Part Number Size NPT A B C D E Weight
948170
(948-170)		 1/4" 1/4-18 2.016" 1.689" 2.756" 0.315" 0.457" 0.29
948171
(948-171)		 3/8" 3/8-18 2.094" 1.89" 3.543" 0.394" 0.457" 0.330
948172
(948-172)		 1/2" 1/2-14 2.343" 2.05" 3.543" 0.583" 0.520" 0.470
948173
(948-173)		 3/4" 3/4-14 2.618" 2.20" 3.780" 0.748" 0.563" 0.68
948174
(948-174)		 1" 1-11.5 3.000" 2.579" 4.528" 0.945" 0.630" 1.11
948175
(948-175)		 1-1/4" 1-1/4-11.5 3.563" 2.953" 4.528" 1.260" 0.709" 1.70
948176
(948-176)		 1-1/2" 1-1/2-11.5 3.965" 3.346" 5.512" 1.575" 0.717" 2.50
948177
(948-177)		 2" 2-11.5 4.496" 3.681" 5.512" 1.969" 0.748" 3.57
