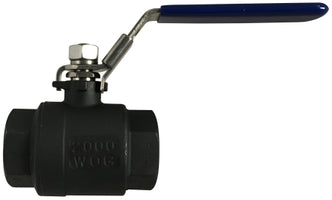

949116 (949-116) Midland Two-Piece Full Port Ball Valve - 2000 PSI - 1-1/4" Female NPT x 1-1/4" Female NPT - Carbon Steel

949116 "949-116" by Midland | Two-Piece Full Port Ball Valve | 2000 PSI | 1-1/4" Female NPT x 1-1/4" Female NPT | Carbon Steel

Save $8.12 Save $8.12
$114.08
$114.08 - $114.08
$114.08
$105.96
$105.96 - $105.96
$105.96

Midland Industries
Two-Piece Full Port Ball Valve - Female NPT x Female NPT - Carbon Steel

Working Pressure: 2000 PSI (138 Bar)

Inventory @ Manufacturers Warehouse: 10 Units
Specifications for Variant SKU: 949116 Midland
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): Carbon Steel
Features:
  • Temperature Range: -10°C to 150°C
  • Suitable medium: WOG
Construction:
  • Generic handle
  • Made in China
Specifications:
  • Threaded End conforms to ANSI B1.20.1
Item Part Material
1 Handle cover Plastic
2 Body CF8M
3 Ball seat PTFE
4 Ball CF8M
5 Cap CF8M
6 Joint Gasket PTFE
7 Thrust Washer PTFE
8 Stem Packing PTFE
9 Gland Nut 304 Stainless Steel
10 Spring Washer 304 Stainless Steel
11 Stem Nut 304 Stainless Steel
12 Stem 316 Stainless Steel
13 Lock Device 304 Stainless Steel
14 Handle 304 Stainless Steel
Part Number Size D L H W Weight
lbs.
949111
(949-111)		 1/4" 0.36" 2.13" 2.13" 4.33" 0.59
949112
(949-112)		 3/8" 0.50" 2.13" 2.17" 4.33" 0.59
949113
(949-113)		 1/2" 0.59" 2.24" 2.28" 4.33" 0.75
949114
(949-114)		 3/4" 0.79" 2.76" 2.40" 4.33" 1.17
949115
(949-115)		 1" 0.98" 3.25" 3.03" 5.04" 1.88
949116
(949-116)		 1-1/4" 1.26" 3.58" 3.19" 5.04" 2.45
949117
(949-117)		 1-1/2" 1.50" 4.06" 3.54" 6.10" 4.06
949118
(949-118)		 2" 1.97" 4.90" 4.25" 6.10" 2.43
