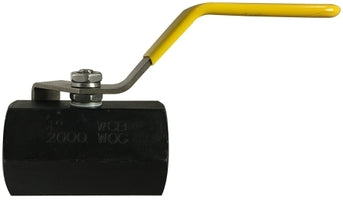

949125 (949-125) Midland Standard Port Ball Valve - 1" Female Thread x 1" Female Thread - Carbon Steel

949125 by Midland | Standard Port Ball Valve | 1" Female Thread x 1" Female Thread | Carbon Steel

Save $4.62 Save $4.62
$64.85
$64.85 - $64.85
$64.85
$60.23
$60.23 - $60.23
$60.23

Midland Industries
Standard Port Ball Valve - Female Thread x Female Thread - Carbon Steel

For chemical and industrial applications.

Inventory @ Manufacturers Warehouse: 143 Units
Specifications for Variant SKU: 949125 Midland
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Carbon Steel
Features:
  • 100% air tested under water, at 100 PSI, open and closed positions.
  • Working Pressure:
    • 1/4" ~ 1" 2000 PSI WOG
    • 1-1/4" ~ 2" 1500 PSI WOG
  • Temperature Range: -600 to 4500F
  • 1 piece ball valve
Construction:
  • Blow-out proof stem design.
  • End types: Threaded
  • Reinforced PTFE seat
  • Generic handles
  • Made in China
Item Part Material
1 Body ASTM A216 WCB
2 Ball ASTM A351 CF8
3 Stem 304 Stainless Steel
4 Ball Seat PTFE
5 Cap Seal PTFE
6 Packing PTFE
7 Handle 304 Stainless Steel
8 Handle Sleeve Vinyl Grip
9 Thrust Washer PTFE
10 Gland 304 Stainless Steel
11 Washer 304 Stainless Steel
12 Handle Nut 304 Stainless Steel
13 Stem Nut 304 Stainless Steel
Part Number Size D H E L Weight
lbs.
949121
(949-121)		 1/4" 0.20" 1.38" 2.95" 1.71" 0.25
949122
(949-122)		 3/8" 0.28" 1.30" 3.27" 1.87" 0.32
949123
(949-123)		 1/2" 0.36" 2.36" 4.53" 2.20" 0.67
949124
(949-124)		 3/4" 0.49" 2.72" 4.53" 2.58" 1.06
949125
(949-125)		 1" 0.59" 2.95" 5.00" 3.19" 1.17
949126
(949-126)		 1-1/4" 0.78" 3.07" 5.29" 3.94" 3.15
949127
(949-127)		 1-1/2" 0.98" 3.39" 5.29" 3.94" 2.15
949128
(949-128)		 2" 1.26" 3.86" 5.29" 4.49" 6.21
