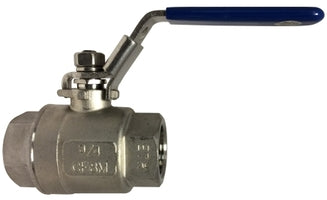

949164 (949-164) Midland Full Port Two-Piece Ball Valve - 1000 PSI - 3/4" Female NPT x 3/4" Female NPT - 316 Stainless Steel

949164 "949-164" by Midland | Full Port Two-Piece Ball Valve | Locking Handle | 3/4" Female NPT x 3/4" Female NPT | 1000 PSI | 316 Stainless Steel

Save $3.39

$47.58

$47.58 - $47.58

$47.58

$44.19

$44.19 - $44.19

$44.19

Midland Industries
Full Port Two-Piece Ball Valve - Female NPT x Female NPT - 316 Stainless Steel

Pressure rating: 1000 PSI

Inventory @ Manufacturers Warehouse: 1815 Units

Quantity

Specifications for Variant SKU: 949164 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s):	316 Stainless Steel

Features:
Quality manufactured for harsh environments. Corrrosion resistant. Working pressure 1000 psi for W.O.G. Temperature range: -60°F to 450°F 100% leakage tested at 100 psi air under water Hydrostatic test pressure: 1500 psi 125 Steam rated Valves will accept a pad-lock on the handle.
Construction:
Investment Casting body Adjustable stem packing Pure teflon seals and seats Blow-out proof stem and safe pressure-reducing hole Locking handle w/ blue generic sleeve Generic Handles

Item	Parts	Material
1	Body	316SS ASTM-A351 CF8M
2	Body Cap	316SS ASTM-A351 CF8M
3	Ball	316SS ASTM-A351 CF8M
4	Seat	Reinforced PTFE
5	Stem	AISI 316 SS
6	Seal	Reinforced PTFE
7	Thrust Washer	Reinforced PTFE
8	Packing	Reinforced PTFE
9	Gland Nut	AISI 304SS
10/11	Nut & Washer	AISI 304SS
12	Handle	AISI 304SS
13	Plastic Cover	Plastic


Part Number	Size	D	L	H	W	Weight
949161 (949-161)	1/4"	0.36"	2.13"	2.13"	4.33"	0.51
949162 (949-162)	3/8"	0.50"	2.13"	2.16"	4.33"	0.49
949163 (949-163)	1/2"	0.59"	2.24"	2.28"	4.17"	0.69
949164 (949-164)	3/4"	0.79"	2.68"	2.40"	4.17"	1.03
949165 (949-165)	1"	0.98"	3.15"	2.50"	4.88"	1.40
949166 (949-166)	1-1/4"	1.26"	3.58"	3.19"	5.04"	2.17
949167 (949-167)	1-1/2"	1.49"	4.05"	3.54"	6.10"	3.33
949168 (949-168)	2"	1.97"	4.88"	4.25"	6.13"	6.02
949170 (949-170)	3"	3.15"	7.28"	5.71"	9.06"	21.01
949180 (949-180)	4"	3.94"	8.84"	7.28"	11.10"	36.18
