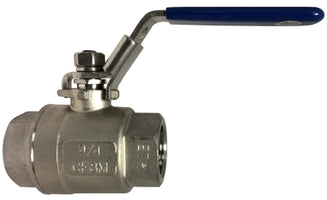

949166 (949-166) Midland Full Port Two-Piece Ball Valve - 1000 PSI - 1-1/4" Female NPT x 1-1/4" Female NPT - 316 Stainless Steel

949166 "949-166" by Midland | Full Port Two-Piece Ball Valve | Locking Handle | 1-1/4" Female NPT x 1-1/4" Female NPT | 1000 PSI | 316 Stainless Steel

Save $79.41 Save $79.41
$198.53
$198.53 - $198.53
$198.53
$119.12
$119.12 - $119.12
$119.12

Midland Industries
Full Port Two-Piece Ball Valve - Female NPT x Female NPT - 316 Stainless Steel

Pressure rating: 1000 PSI

Inventory @ Manufacturers Warehouse: 323 Units
Specifications for Variant SKU: 949166 Midland
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Features:
  • Quality manufactured for harsh environments.
  • Corrrosion resistant.
  • Working pressure 1000 psi for W.O.G.
  • Temperature range: -60°F to 450°F
  • 100% leakage tested at 100 psi air under water
  • Hydrostatic test pressure: 1500 psi
  • 125 Steam rated
  • Valves will accept a pad-lock on the handle.
Construction:
  • Investment Casting body
  • Adjustable stem packing
  • Pure teflon seals and seats
  • Blow-out proof stem and safe pressure-reducing hole
  • Locking handle w/ blue generic sleeve
  • Generic Handles
Item Parts Material
1 Body 316SS ASTM-A351 CF8M
2 Body Cap 316SS ASTM-A351 CF8M
3 Ball 316SS ASTM-A351 CF8M
4 Seat Reinforced PTFE
5 Stem AISI 316 SS
6 Seal Reinforced PTFE
7 Thrust Washer Reinforced PTFE
8 Packing Reinforced PTFE
9 Gland Nut AISI 304SS
10/11 Nut & Washer AISI 304SS
12 Handle AISI 304SS
13 Plastic Cover Plastic
Part Number Size D L H W Weight
949161
(949-161)		 1/4" 0.36" 2.13" 2.13" 4.33" 0.51
949162
(949-162)		 3/8" 0.50" 2.13" 2.16" 4.33" 0.49
949163
(949-163)		 1/2" 0.59" 2.24" 2.28" 4.17" 0.69
949164
(949-164)		 3/4" 0.79" 2.68" 2.40" 4.17" 1.03
949165
(949-165)		 1" 0.98" 3.15" 2.50" 4.88" 1.40
949166
(949-166)		 1-1/4" 1.26" 3.58" 3.19" 5.04" 2.17
949167
(949-167)		 1-1/2" 1.49" 4.05" 3.54" 6.10" 3.33
949168
(949-168)		 2" 1.97" 4.88" 4.25" 6.13" 6.02
949170
(949-170)		 3" 3.15" 7.28" 5.71" 9.06" 21.01
949180
(949-180)		 4" 3.94" 8.84" 7.28" 11.10" 36.18
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
