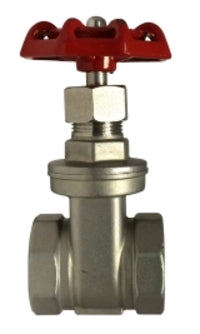

949257 (949-257) Midland Gate Valve - 1-1/2" Female Pipe x 1-1/2" Female Pipe - 316 Stainless Steel

949257 by Midland | Gate Valve | 1-1/2" Female Pipe x 1-1/2" Female Pipe | 316 Stainless Steel

Save $75.59 Save $75.59
$188.97
$188.97 - $188.97
$188.97
$113.38
$113.38 - $113.38
$113.38

Midland Industries
Gate Valve - Female Pipe x Female Pipe - 316 Stainless Steel

Pressure Rating: 200 PSI (PN16)

Inventory @ Manufacturers Warehouse: 19 Units
Specifications for Variant SKU: 949257 Midland
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Applicable Specs & Approvals: API 598
Features:
  • Threaded Ends: ANSI B2.1
  • Material: CF8M (#316 SS)
  • Pressure Test: API 598
  • Made in China
Number Part Material QTY
1 Body CF8M 1
2 Disc CF8M 1
3 Seal CF8M 1
4 Cap CF8M 1
5 Seal PTFE 1
6 Stem 304 Stainless Steel 1
7 Seal PTFE 1
8 Gland 304 Stainless Steel 1
9 Nut 304 Stainless Steel 1
10 Handle Wheel Steel 1
Part Number Size L D D1 H Weight
lbs.
949253
(949-253)		 1/2" 2.07" 2.54" 0.55" 3.37" 0.78
949254
(949-254)		 3/4" 2.28" 2.89" 0.74" 4.03" 0.99
949255
(949-255)		 1" 2.42" 2.89" 0.95" 4.46" 1.25
949256
(949-256)		 1-1/4" 2.79" 3.06" 1.18" 4.86" 1.76
949257
(949-257)		 1-1/2" 2.92" 3.79" 1.49" 5.53" 2.59
949258
(949-258)		 2" 3.30" 4.17" 1.85" 6.12" 3.54
