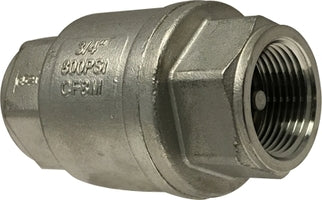

949401 (949-401) Midland In Line Check Valve - High Capacity - 1/4" Female NPT x 1/4" Female NPT - Stainless Steel

949401 by Midland | In Line Check Valve | High Capacity | 1/4" Female NPT x 1/4" Female NPT | Stainless Steel

Save $87.08 Save $87.08
$217.70
$217.70 - $217.70
$217.70
$130.62
$130.62 - $130.62
$130.62

Midland Industries
In-Line Check Valve - High Capacity - Female NPT x Female NPT - Stainless Steel

High Capacity Pressure: 800 WOG

Inventory @ Manufacturers Warehouse: 15 Units
Specifications for Variant SKU: 949401 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Female NPT
Material(s): Stainless Steel
Seal Material(s): PTFE
Features:
  • Low Cracking Pressure: 1/2 PSI
  • Flow profile designed to minimize head loss
  • Perfect Seating both at high and low Pressure
  • Wide Temperature Range: +10°F to 450°F
  • Corrosion Resistant - excellent for use on chemicals
  • 125 WSP Saturated Steam
Construction:
  • Soft PTFE seat for bubble tight shutoff
  • Spring loaded for fast seating action
  • ASTM A351-CF8M Investment Casting
  • Dual guided stem & disc
  • Made in Italy
Specifications:
  • ANSI B1.20.1 Threads
Part Part Name Material PCS
1 Body ASTM A351-CF8M 1
2 Spring SS316 1
3 Center Guide ASTM A351-CF8M 1
4 Disc ASTM A351-CF8M 1
5 Seat PTFE 1
6 Gasket PTFE 1
7 End Cap ASTM A351-CF8M 1
Part Number Size D L PSI Weight
lbs.
949401
(949-401)		 1/4" 1.15" 2.25" 800 0.36
949402
(949-402)		 3/8" 1.16" 2.25" 800 0.34
949403
(949-403)		 1/2" 1.35" 2.31" 800 0.40
949404
(949-404)		 3/4" 1.81" 2.87" 800 0.85
949405
(949-405)		 1" 2.13" 3.50" 800 1.30
949406
(949-406)		 1-1/4" 2.46" 4.18" 800 2.50
949407
(949-407)		 1-1/2" 2.88" 4.93" 800 3.40
949408
(949-408)		 2" 3.56" 6.00" 800 6.00

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
