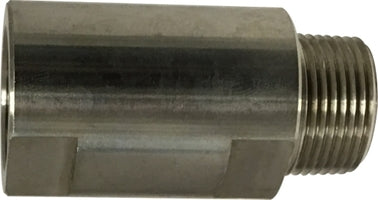

949471 (949-471) Midland Spring Check Valve - 1/4" Male Pipe x 1/4" Female Pipe - 316 Stainless Steel

949471 by Midland | Spring Check Valve | 1/4" Male Pipe x 1/4" Female Pipe | 316 Stainless Steel

Save $2.16 Save $2.16
$30.42
$30.42 - $30.42
$30.42
$28.26
$28.26 - $28.26
$28.26

Midland Industries
Spring Check Valve - Male Pipe x Female Pipe - 316 Stainless Steel

Working Pressure: 1500 PSI (PN100)

Inventory @ Manufacturers Warehouse: 592 Units
Specifications for Variant SKU: 949471 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Female NPT
Material(s): 316 Stainless Steel
Features:
  • Flows Male -> Female
  • Working Temperature: -10°C -150°C
  • Opening Pressure: 2~3PSI
  • Suitable Medium: W.O.G.
Construction:
  • Made in China
Number Part Material QTY
1 Body 316 Stainless Steel 1
2 Ring Rubber 1
3 Spring 304 Stainless Steel 1
4 Cap CF8M 1
5 Spool 304/316 Stainless Steel 1
6 Spring Ring 304 Stainless Steel 1
Part Number Size L C D B E Weight
lbs.
949471
(949-471)		 1/4" 2.165" 0.217" 0.748" 0.699" 0.394" 0.176
949472
(949-472)		 3/8" 2.165" 0.295" 0.866" 0.787" 0.394" 0.22
949473
(949-473)		 1/2" 2.165" 0.413" 1.063" 0.945" 0.472" 0.27
949474
(949-474)		 3/4" 2.677" 0.591" 1.417" 1.26" 0.472" 0.62
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
