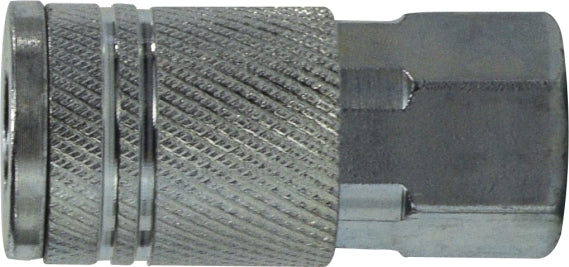

98811 (98-811) Midland Industrial Interchange Pneumatic Female Coupler - 3/8" Female Pipe - 3/8" Body Size - Steel

98811 by Midland | Industrial Interchange Pneumatic Coupler | 3/8" Female Pipe | 3/8" Body Size | Steel

Save $6.08 Save $6.08
$15.20
$15.20 - $15.20
$15.20
$9.12
$9.12 - $9.12
$9.12

Midland Industries
Industrial Interchange Pneumatic Coupler - Steel

Industry standard design for compressed air, water, grease, paint, limited vacuum and limited gases.

Inventory @ Manufacturers Warehouse: 1396 Units
Specifications for Variant SKU: 98811 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPT, 3/8in Female Industrial Pneumatic QD Interchange
Material(s): Steel
Seal Material(s): NBR
Features:
  • Couplers have a plated steel body with steel valves.
  • 6 Steel locking balls (1/2" body size has 8 steel locking balls).
  • NBR seal.
  • Plugs are steel with green blue zinc plating.
  • Stainless steel springs.
  • Manual retract for connecting and disconnecting.
  • Maximum working pressure is 250 PSI.
Couplers Plugs
Steel Female Coupler

 Steel Female Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
- - - 28533
(28-533)		 1/8" 1/4"
28540S
(28-540S)		 1/4" 1/4" 28534
(28-534)		 1/4" 1/4"
28541S
(28-541S)		 3/8" 1/4" 28535
(28-535)		 3/8" 1/4"
28533
(28-533)		 1/8" 1/4" - - -
98810
(98-810)		 1/4" 3/8" 98801
(98-801)		 1/4" 3/8"
98811
(98-811)		 3/8" 3/8" 98802
(98-802)		 3/8" 3/8"
98812
(98-812)		 3/8" 1/2" - - -
99812
(99-812)		 1/2" 1/2" 99803
(99-803)		 1/2" 1/2"
99813
(99-813)		 3/4" 1/2" 99804
(99-804)		 3/4" 1/2"
Steel Male Coupler

 Steel Male Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
- - - 28545
(28-545)		 1/8" 1/4"
28552S
(28-552S)		 1/4" 1/4" 28546
(28-546)		 1/4" 1/4"
28553S
(28-553S)		 3/8" 1/4" 28547
(28-547)		 3/8" 1/4"
98823
(98-823)		 1/4" 3/8" 98814
(98-814)		 1/4" 3/8"
98824
(98-824)		 3/8" 3/8" 98815
(98-815)		 3/8" 3/8"
98825
(98-825)		 1/2" 3/8" - - -
99825
(99-825)		 1/2" 1/2" 99816
(99-816)		 1/2" 1/2"
99826
(99-826)		 3/4" 1/2" 99817
(99-817)		 3/4" 1/2"
Steel Hose Barb Coupler

 Steel Hose Barb Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28562S
(28-562S)		 1/4" 1/4" 28557
(28-557)		 1/4" 1/4"
28564S
(28-564S)		 3/8" 1/4" 28559
(28-559)		 3/8" 1/4"
98840
(98-840)		 1/4" 3/8" - - -
98841
(98-841)		 3/8" 3/8" 98828
(98-828)		 3/8" 3/8"
99841
(99-841)		 3/8" 1/2" 99828
(99-828)		 3/8" 1/2"
99843
(99-843)		 1/2" 1/2" 99830
(99-830)		 1/2" 1/2"
Steel Push-On Coupler

 Steel Push-On Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
28565S
(28-565S)		 1/4" 1/4" 28558
(28-558)		 1/4" 1/4"
28566S
(28-566S)		 3/8" 1/4" 28561
(28-561)		 3/8" 1/4"
98842
(98-842)		 3/8" 3/8" 98830
(98-830)		 3/8" 3/8"
Steel Male Swivel Plug
Part Number Thread Size Body Size Part Number Thread Size Body Size
- - - 320065
(320-065)		 1/4" 1/4"
- - - - - -
- - - - - -
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
