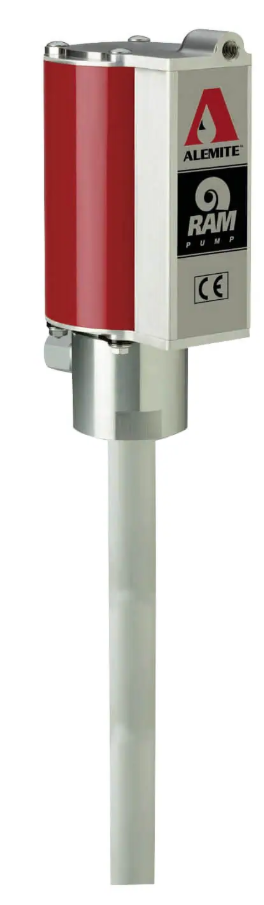

9949 by Alemite | Grease Pump | Pneumatic Ram - Stationary | Drum Size: 400 Lb. | Material Outlet: 3/8" Female NPTF

9949 by Alemite | Grease Pump | Pneumatic Ram - Stationary | Drum Size: 400 Lb. | Material Outlet: 3/8" Female NPTF

Save $1,219.64 Save $1,219.64
$4,268.74
$4,268.74 - $4,268.74
$4,268.74
$3,049.10
$3,049.10 - $3,049.10
$3,049.10

PRODUCT DESCRIPTION

Alemite Grease Pumps - Hydraulic
Specifications for Variant SKU: 9949 Alemite
Applications:
  • Alemite Grease pumps are designed to handle a wide range of applications, fluid viscosities and system pressures. Combined with Alemite Hose Reels, Dispensing Valves and Meters,Alemite Grease Pumps deliver lubricant from tanks, drums, totes and pails.
Features:
  • Alemite Stationary RAM Pumps deliver fast, quiet and efficient operation. Capable of delivery up to 4.5 pounds per minute, RAM double acting grease pumps reduce line pulsation and allow lower operating pressure. They are designed for piped installations of moderate length.
  • 3" diameter air motor
  • Recommended for piped installations up to 150 feet
  • Meets OSHA noise requirements (85dB)
  • Easy 360° adjustment of material outlet and air inlet
  • May be used with or without lubricator
  • Easy access air motor and spool - without removing downtube
  • Flexible follower for straight or tapered containers
  • Metric RAM pumps meet European CE standards
  • Easy serviceability
  • Air Inlet: 1/4" NPTF(f)

Part Number Drum size Material Outlet Pump Ratio Delivery Follower Cover Weight
9940 120 Lb. 3/8" NPTF(f) 70:1 3.25 Lb./minute 338802 338371 28 Lb.
8700-B 400 Lb. 3/8" NPTF(f) 70:1 3.25 Lb./minute 338911 338163 32 Lb.
9950-1 120 Lb. 3/8" NPTF(f) 50:1 4.5 Lb./minute 338802 338371 19 Lb.
9950-A1 120 Lb. 3/8" NPTF(f) 50:1 4.5 Lb./minute 338802 (included) 338371 (included) 32 Lb.
9979 400 Lb. 3/8" NPTF(f) 50:1 4.5 Lb./minute 338911 338163 25 Lb.
9979-A 400 Lb. 3/8" NPTF(f) 50:1 4.5 Lb./minute 338911 (included) 338163 (included) 49 Lb.
9950-C1 20 Kg. 3/8" NPTF(f) 50:1 2.04 Kg./minute 338992 338982 18 Lb.
9950-1 50 Kg. 3/8" NPTF(f) 50:1 2.04 Kg./minute 338802 338371 19 Lb.
9950-D1 180 Kg. 3/8" NPTF(f) 50:1 2.04 Kg./minute 338911 338984 23 Lb.
9930 Bulk 3/8" NPTF(f) 50:1 4.5 Lb./minute Not required Not required 16 Lb.
