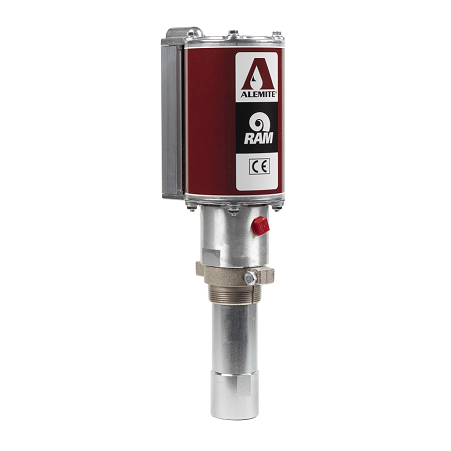

9968 by Alemite | Oil Pump | Pneumatic RAM - Stationary | Drum Size: Stub | Material Inlet: 1-1/2" Female NPTF | Material Outlet: 1/2" Female NPTF

9968 by Alemite | Oil Pump | Pneumatic RAM - Stationary | Drum Size: Stub | Material Inlet: 1-1/2" Female NPTF | Material Outlet: 1/2" Female NPTF

Save $419.04 Save $419.04
$1,466.64
$1,466.64 - $1,466.64
$1,466.64
$1,047.60
$1,047.60 - $1,047.60
$1,047.60

PRODUCT DESCRIPTION

Alemite Oil Pumps - Pneumatic Ram - Stationary Pumps
Specifications for Variant SKU: 9968 Alemite
Applications:
  • Alemite Oil Pumps are ideal for applications where fluids are piped to multiple outlets. Combined with Alemite Hose Reels, Dispensing Valves and Meters, Alemite Oil Pumps deliver motor oils, gear oils, cutting oils, hydraulic oils, machine coolants, automatic transmission fluids and a wide range of petroleum based fluids from tanks, drums, totes and pails.
  • Alemite Oil Pumps can be used for bulk transfer or direct delivery from the original container.
Features:
  • Alemite Stationary RAM Pumps deliver fast, quiet and efficient operation, and are rugged enough to handle challenging oil applications. RAM pumps are durable, and can operate at rates up to 20 gallons per minute.
  • Handles fluids up to SAE 140
  • Meets OSHA noise requirements (85dB)
  • 3" diameter air motor
  • Will mount to 1 1/2" suction pipe from remote tank (1" for model 9970)
  • Recommended for piped installations of short to moderate length
  • Easy serviceability
  • 1/4" air inlet

Part Number Drum Size Material Inlet Material Outlet Pump Ratio Delivery Bung Adapter Weight
(Lbs)
9916-A1 Stub 1-1/2" NPTF(f) 1/2" NPTF(f) 1:1 16 gpm Integral 17 Lb.
9918-A Stub 1-1/2" NPTF(f) 1/2" NPTF(f) 3:1 9 gpm Integral 17 Lb.
9920 N/A 1" NPTF(f) 1" NPTF(f) 1:1 20 gpm No 18 Lb.
9960 16 gallon 1-1/2" NPTF(f) 1/2" NPTF(f) 5:1 7 gpm 326750-B1 18 Lb.
9960-A(1)(2) 16 gallon 1-1/2" NPTF(f) 1/2" NPTF(f) 5:1 7 gpm No 17 Lb.
9968 Stub 1-1/2" NPTF(f) 1/2" NPTF(f) 5:1 7 gpm 326750-B1 14 Lb.
9968-A Stub 1-1/2" NPTF(f) 1/2" NPTF(f) 5:1 7 gpm No 14 Lb.
9969-B(2) 55 gallon 1-1/2" NPTF(f) 1/2" NPTF(f) 5:1 7 gpm 326750-B1 18 Lb.
9970 Stub 1" NPTF(f) 3/8" NPTF(f) 10:1 3.5 gpm 326750-E1 11 Lb.


(1) Includes drum cover
(2) Includes downtube
