9SS16FP100XPS100-Z-AL by Super Swivel | 6241-Z-AL | 1-11-1/2 Female Pipe NPTF x 1-11-1/2 Female Pipe Swivel NPSM | 0.590" Through Hole | 90° Elbow | Zinc | AFLAS Seal

Save $60.71

$151.78

$151.78 - $151.78

$151.78

$91.07

$91.07 - $91.07

$91.07

Super Swivels
90° Swivels - Female Pipe NPTF X Female Pipe Swivel NPSM

Quantity

Specifications for Variant SKU: 9SS16FP100XPS100-Z-AL Super Swivels #6241
Shape (Orientation):	90 Degree
Ends Configuration:	1in Female NPTF, 1in Female NPSM
Material(s):	Zink-Plated Carbon Steel
Seal Material(s):	AFLAS

Features:

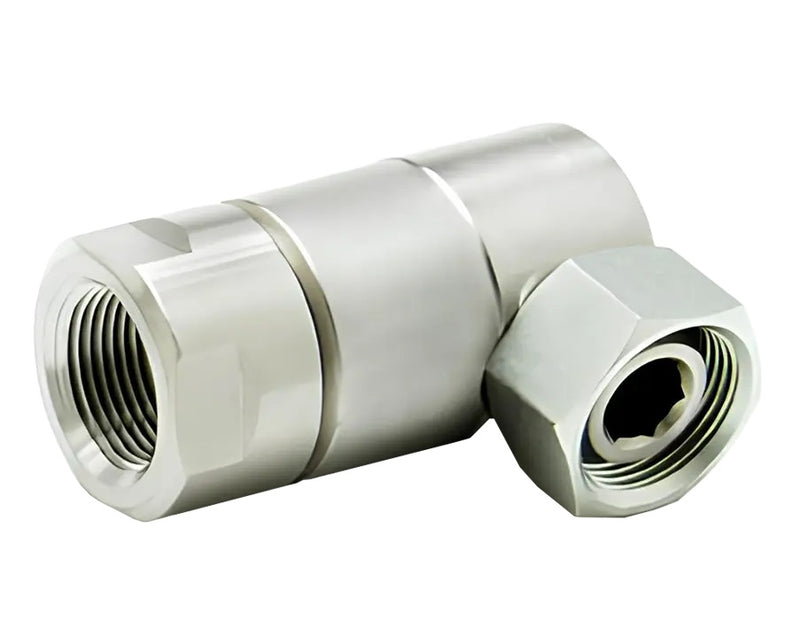

90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path. They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping. 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation. Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks. Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics. No Kinks - No Hose Twisting.
Notes:
Super Swivels are not recommended for breathing air/oxygen or steam. All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure. Any series stem will fit with the same series body.
Base Material and Plating:
Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc. Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
(V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F) (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F) (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

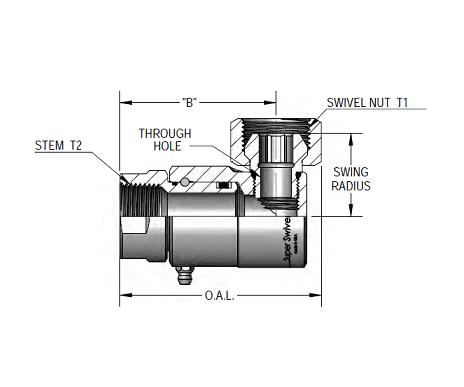

Part Number	Material	Seal	Overall Length	Dim. B	Swivel Hex	Wrench/Hex	Swivel Nut T1	Stem T2	SWG. Radius	Max PSIG	Through Hole
9SS4FP25XPS25-Z-V	Zinc	Viton	2.510"	2.000"	0.687"	0.750"	1/4-18 NPSM	1/4-18 NPTF	1.326"	3500 PSIG	0.218"
9SS4FP25XPS25-Z-AL	Zinc	AFLAS	2.510"	2.000"	0.687"	0.750"	1/4-18 NPSM	1/4-18 NPTF	1.326"	3500 PSIG	0.218"
9SS4FP25XPS25-Z-ETP	Zinc	Extreme Viton®	2.510"	2.000"	0.687"	0.750"	1/4-18 NPSM	1/4-18 NPTF	1.326"	3500 PSIG	0.218"
9SS4FP25XPS25-Ni-V	Electroless Nickel	Viton	2.510"	2.000"	0.687"	0.750"	1/4-18 NPSM	1/4-18 NPTF	1.326"	3500 PSIG	0.218"
9SS4FP25XPS25-Ni-AL	Electroless Nickel	AFLAS	2.510"	2.000"	0.687"	0.750"	1/4-18 NPSM	1/4-18 NPTF	1.326"	3500 PSIG	0.218"
9SS4FP25XPS25-Ni-ETP	Electroless Nickel	Extreme Viton®	2.510"	2.000"	0.687"	0.750"	1/4-18 NPSM	1/4-18 NPTF	1.326"	3500 PSIG	0.218"

9SS4FP25XPS38-Z-V	Zinc	Viton	2.510"	2.000"	0.875"	0.750"	3/8-18 NPSM	1/4-18 NPTF	1.555"	3500 PSIG	0.250"
9SS4FP25XPS38-Z-AL	Zinc	AFLAS	2.510"	2.000"	0.875"	0.750"	3/8-18 NPSM	1/4-18 NPTF	1.555"	3500 PSIG	0.250"
9SS4FP25XPS38-Z-ETP	Zinc	Extreme Viton®	2.510"	2.000"	0.875"	0.750"	3/8-18 NPSM	1/4-18 NPTF	1.555"	3500 PSIG	0.250"
9SS4FP25XPS38-Ni-V	Electroless Nickel	Viton	2.510"	2.000"	0.875"	0.750"	3/8-18 NPSM	1/4-18 NPTF	1.555"	3500 PSIG	0.250"
9SS4FP25XPS38-Ni-AL	Electroless Nickel	AFLAS	2.510"	2.000"	0.875"	0.750"	3/8-18 NPSM	1/4-18 NPTF	1.555"	3500 PSIG	0.250"
9SS4FP25XPS38-Ni-ETP	Electroless Nickel	Extreme Viton®	2.510"	2.000"	0.875"	0.750"	3/8-18 NPSM	1/4-18 NPTF	1.555"	3500 PSIG	0.250"

9SS8FP38XPS38-Z-V	Zinc	Viton	2.670"	2.120"	0.875"	0.875"	3/8-18 NPSM	3/8-18 NPTF	1.437"	3500 PSIG	0.327"
9SS8FP38XPS38-Z-AL	Zinc	AFLAS	2.670"	2.120"	0.875"	0.875"	3/8-18 NPSM	3/8-18 NPTF	1.437"	3500 PSIG	0.327"
9SS8FP38XPS38-Z-ETP	Zinc	Extreme Viton®	2.670"	2.120"	0.875"	0.875"	3/8-18 NPSM	3/8-18 NPTF	1.437"	3500 PSIG	0.327"
9SS8FP38XPS38-Ni-V	Electroless Nickel	Viton	2.670"	2.120"	0.875"	0.875"	3/8-18 NPSM	3/8-18 NPTF	1.437"	3500 PSIG	0.327"
9SS8FP38XPS38-Ni-AL	Electroless Nickel	AFLAS	2.670"	2.120"	0.875"	0.875"	3/8-18 NPSM	3/8-18 NPTF	1.437"	3500 PSIG	0.327"
9SS8FP38XPS38-Ni-ETP	Electroless Nickel	Extreme Viton®	2.670"	2.120"	0.875"	0.875"	3/8-18 NPSM	3/8-18 NPTF	1.437"	3500 PSIG	0.327"

9SS8FP50XPS50-Z-V	Zinc	Viton	2.850"	2.270"	1.000"	1.125"	1/2-14 NPSM	1/2-14 NPTF	1.521"	3500 PSIG	0.390"
9SS8FP50XPS50-Z-AL	Zinc	AFLAS	2.850"	2.270"	1.000"	1.125"	1/2-14 NPSM	1/2-14 NPTF	1.521"	3500 PSIG	0.390"
9SS8FP50XPS50-Z-ETP	Zinc	Extreme Viton®	2.850"	2.270"	1.000"	1.125"	1/2-14 NPSM	1/2-14 NPTF	1.521"	3500 PSIG	0.390"
9SS8FP50XPS50-Ni-V	Electroless Nickel	Viton	2.850"	2.270"	1.000"	1.125"	1/2-14 NPSM	1/2-14 NPTF	1.521"	3500 PSIG	0.390"
9SS8FP50XPS50-Ni-AL	Electroless Nickel	AFLAS	2.850"	2.270"	1.000"	1.125"	1/2-14 NPSM	1/2-14 NPTF	1.521"	3500 PSIG	0.390"
9SS8FP50XPS50-Ni-ETP	Electroless Nickel	Extreme Viton®	2.850"	2.270"	1.000"	1.125"	1/2-14 NPSM	1/2-14 NPTF	1.521"	3500 PSIG	0.390"

9SS12FP75XPS75-Z-V	Zinc	Viton	3.080"	2.360"	1.250"	1.375"	3/4-14 NPSM	3/4-14 NPTF	1.664"	3500 PSIG	0.521"
9SS12FP75XPS75-Z-AL	Zinc	AFLAS	3.080"	2.360"	1.250"	1.375"	3/4-14 NPSM	3/4-14 NPTF	1.664"	3500 PSIG	0.521"
9SS12FP75XPS75-Z-ETP	Zinc	Extreme Viton®	3.080"	2.360"	1.250"	1.375"	3/4-14 NPSM	3/4-14 NPTF	1.664"	3500 PSIG	0.521"
9SS12FP75XPS75-Ni-V	Electroless Nickel	Viton	3.080"	2.360"	1.250"	1.375"	3/4-14 NPSM	3/4-14 NPTF	1.664"	3500 PSIG	0.521"
9SS12FP75XPS75-Ni-AL	Electroless Nickel	AFLAS	3.080"	2.360"	1.250"	1.375"	3/4-14 NPSM	3/4-14 NPTF	1.664"	3500 PSIG	0.521"
9SS12FP75XPS75-Ni-ETP	Electroless Nickel	Extreme Viton®	3.080"	2.360"	1.250"	1.375"	3/4-14 NPSM	3/4-14 NPTF	1.664"	3500 PSIG	0.521"

9SS16FP100XPS100-Z-V	Zinc	Viton	3.850"	2.980"	1.500"	1.625"	1-11-1/2 NPSM	1-11-1/2 NPTF	1.956"	3500 PSIG	0.590"
9SS16FP100XPS100-Z-AL	Zinc	AFLAS	3.850"	2.980"	1.500"	1.625"	1-11-1/2 NPSM	1-11-1/2 NPTF	1.956"	3500 PSIG	0.590"
9SS16FP100XPS100-Z-ETP	Zinc	Extreme Viton®	3.850"	2.980"	1.500"	1.625"	1-11-1/2 NPSM	1-11-1/2 NPTF	1.956"	3500 PSIG	0.590"
9SS16FP100XPS100-Ni-V	Electroless Nickel	Viton	3.850"	2.980"	1.500"	1.625"	1-11-1/2 NPSM	1-11-1/2 NPTF	1.956"	3500 PSIG	0.590"
9SS16FP100XPS100-Ni-AL	Electroless Nickel	AFLAS	3.850"	2.980"	1.500"	1.625"	1-11-1/2 NPSM	1-11-1/2 NPTF	1.956"	3500 PSIG	0.590"
9SS16FP100XPS100-Ni-ETP	Electroless Nickel	Extreme Viton®	3.850"	2.980"	1.500"	1.625"	1-11-1/2 NPSM	1-11-1/2 NPTF	1.956"	3500 PSIG	0.590"

9SS20FP125XPS125-Z-V	Zinc	Viton	4.365"	3.285"	1.875"	2.000"	1-1/4-11-1/2 NPSM	1-1/4-11-1/2 NPTF	2.570"	3500 PSIG	0.906"
9SS20FP125XPS125-Z-AL	Zinc	AFLAS	4.365"	3.285"	1.875"	2.000"	1-1/4-11-1/2 NPSM	1-1/4-11-1/2 NPTF	2.570"	3500 PSIG	0.906"
9SS20FP125XPS125-Z-ETP	Zinc	Extreme Viton®	4.365"	3.285"	1.875"	2.000"	1-1/4-11-1/2 NPSM	1-1/4-11-1/2 NPTF	2.570"	3500 PSIG	0.906"
9SS20FP125XPS125-Ni-V	Electroless Nickel	Viton	4.365"	3.285"	1.875"	2.000"	1-1/4-11-1/2 NPSM	1-1/4-11-1/2 NPTF	2.570"	3500 PSIG	0.906"
9SS20FP125XPS125-Ni-AL	Electroless Nickel	AFLAS	4.365"	3.285"	1.875"	2.000"	1-1/4-11-1/2 NPSM	1-1/4-11-1/2 NPTF	2.570"	3500 PSIG	0.906"
9SS20FP125XPS125-Ni-ETP	Electroless Nickel	Extreme Viton®	4.365"	3.285"	1.875"	2.000"	1-1/4-11-1/2 NPSM	1-1/4-11-1/2 NPTF	2.570"	3500 PSIG	0.906"

9SS24FP150XPS150-Ni-V	Electroless Nickel	Viton	5.260"	4.040"	2.125"	2.375"	1-1/2-11-1/2 NPSM	1-1/2-11-1/2 NPTF	2.630"	3500 PSIG	1.040"
9SS24FP150XPS150-Ni-AL	Electroless Nickel	AFLAS	5.260"	4.040"	2.125"	2.375"	1-1/2-11-1/2 NPSM	1-1/2-11-1/2 NPTF	2.630"	3500 PSIG	1.040"
9SS24FP150XPS150-Ni-ETP	Electroless Nickel	Extreme Viton®	5.260"	4.040"	2.125"	2.375"	1-1/2-11-1/2 NPSM	1-1/2-11-1/2 NPTF	2.630"	3500 PSIG	1.040"

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
