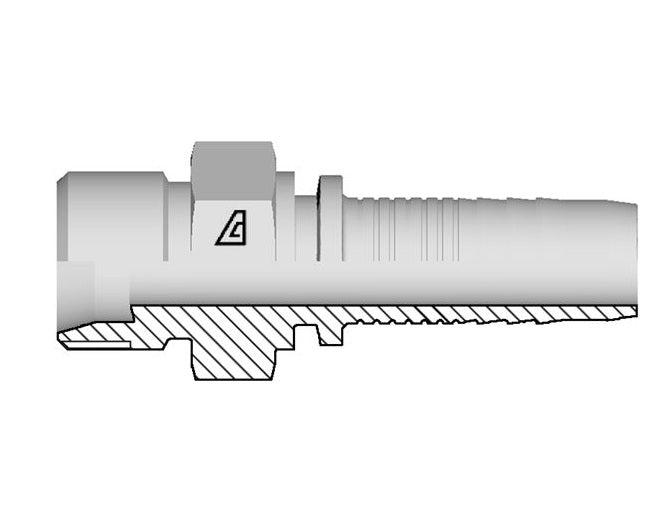

A-0404-BTTF Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Bite Type Tube Fitting | Steel

A-0404-BTTF Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Bite Type Tube Fitting | Steel

Save $2.45 Save $2.45
$8.58
$8.58 - $8.58
$8.58
$6.13
$6.13 - $6.13
$6.13

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Bite Type Tube Fitting
Specifications for Variant SKU: A-0404-BTTF Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0404-BTTF 04 1/4" 6.4mm 04 7/16-20" 21.8mm 12mm 0.06 lbs
A-0506-BTTF 05 5/16" 7.9mm 06 9/16-18" 24.2mm 16mm 0.08 lbs
A-0606-BTTF 06 3/8" 9.5mm 06 9/16-18" 24.2mm 16mm 0.09 lbs
A-0808-BTTF 08 1/2" 12.7mm 08 3/4-16" 28.4mm 22mm 0.14 lbs
A-1212-BTTF 12 3/4" 19.0mm 12 1-1/16-12" 33.1mm 30mm 0.09 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
