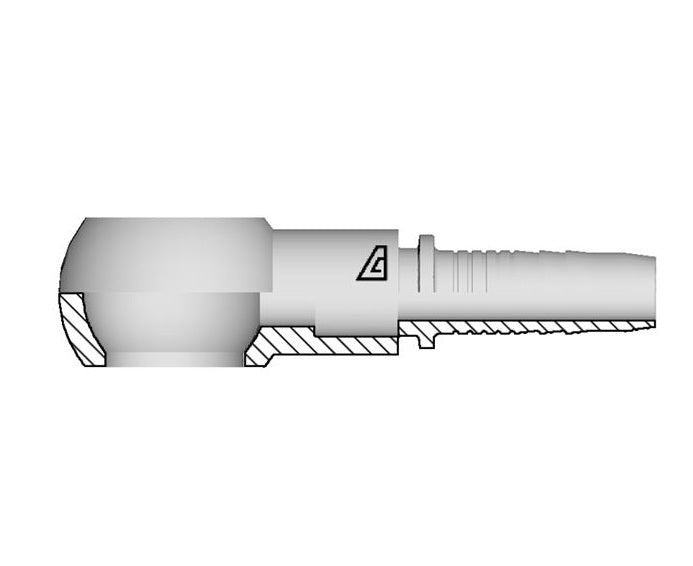

A-0512-MBAN Alfagomma by Kuriyama | MBOLT Series | Two-Piece Hydraulic Hose Fitting | -05 Hose ID x M12 Metric Banjo | Steel

A-0512-MBAN Alfagomma by Kuriyama | MBOLT Series | Two-Piece Hydraulic Hose Fitting | -05 Hose ID x M12 Metric Banjo | Steel

Save $2.55 Save $2.55
$8.93
$8.93 - $8.93
$8.93
$6.38
$6.38 - $6.38
$6.38

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Metric Banjo
Specifications for Variant SKU: A-0512-MBAN Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 12mm Male Metric Banjo
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 K Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) lbs/each
A-0412-MBAN 04 1/4" 6.4mm M12x1.5 28.5mm 20mm 0.05 lbs
A-0414-MBAN 04 1/4" 6.4mm M14x1.5 27.5mm 24mm 0.06 lbs
A-0512-MBAN 05 5/16" 7.9mm M12x1.5 28.5mm 24mm 0.06 lbs
A-0514-MBAN 05 5/16" 7.9mm M14x1.5 27.5mm 24mm 0.07 lbs
A-0614-MBAN 06 3/8" 9.5mm M14x1.5 27.5mm 24mm 0.08 lbs
A-0616-MBAN 06 3/8" 9.5mm M16x1.5 30.5mm 28mm 0.11 lbs
A-0618-MBAN 06 3/8" 9.5mm M18x1.5 31.5mm 32mm 0.15 lbs
A-0818-MBAN 08 1/2" 12.7mm M18x1.5 32.0mm 32mm 0.17 lbs
A-0822-MBAN 08 1/2" 12.7mm M22x1.5 35.0mm 39mm 0.19 lbs
A-1022-MBAN 10 5/8" 15.9mm M22x1.5 35.0mm 39mm 0.28 lbs
A-1226-MBAN 12 3/4" 19.0mm M26x1.5 38.5mm 46mm 0.42 lbs
A-1630-MBAN 16 1" 25.4mm M30x1.5 42.5mm 54mm 0.94 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
