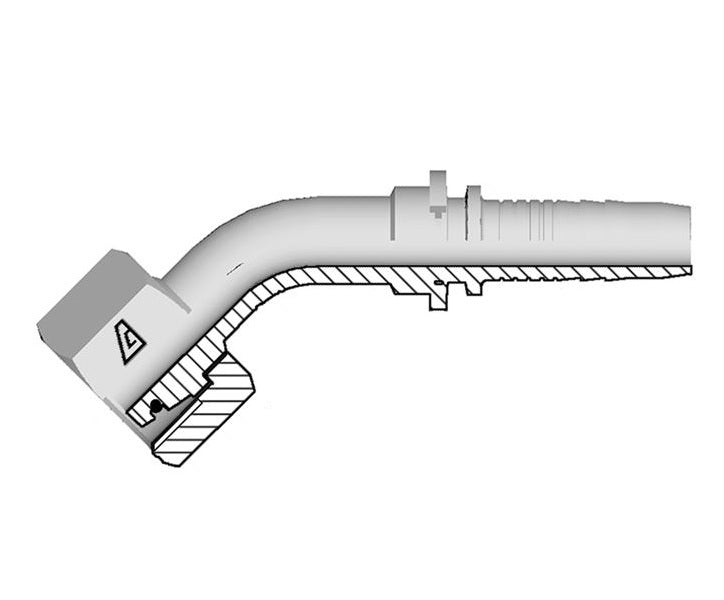

A-0516-FM4L Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | DIN 3865 Light | -05 Hose ID x M16 Female Metric O-Ring Swivel 24° Seat | Steel

Save $2.02

$7.07

$7.07 - $7.07

$7.07

$5.05

$5.05 - $5.05

$5.05

Specifications for Variant SKU: A-0516-FM4L Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	45 Degree
Material(s):	Steel
Applicable Specs & Approvals:	DIN 3865
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	D Drop	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	(mm)	lbs/each
A-0414-FM4L	04	1/4"	6.4mm	M14x1.5	8mm	42.7mm	17.5mm	17mm	0.08 lbs
A-0416-FM4L	04	1/4"	6.4mm	M16x1.5	10mm	42.7mm	20.0mm	19mm	0.10 lbs
A-0516-FM4L	05	5/16"	7.9mm	M16x1.5	10mm	47.5mm	20.0mm	19mm	0.13 lbs
A-0616-FM4L	06	3/8"	9.5mm	M16x1.5	10mm	46.8mm	20.0mm	19mm	0.14 lbs
A-0618-FM4L	06	3/8"	9.5mm	M18x1.5	12mm	46.8mm	19.5mm	22mm	0.15 lbs
A-0822-FM4L	08	1/2"	12.7mm	M22x1.5	15mm	55.0mm	21.0mm	27mm	0.24 lbs
A-1026-FM4L	10	5/8"	15.9mm	M26x1.5	18mm	65.3mm	24.0mm	32mm	0.37 lbs
A-1230-FM4L	12	3/4"	19.0mm	M30x2	22mm	69.4mm	32.0mm	36mm	0.54 lbs
A-1636-FM4L	16	1"	25.4mm	M36x2	28mm	91.4mm	32.0mm	41mm	0.74 lbs
A-2045-FM4L	20	1-1/4"	31.8mm	M45x2	35mm	135.5mm	45.0mm	50mm	1.32 lbs
A-2452-FM4L	24	1-1/2"	38.1mm	M52x2	42mm	114.1mm	47.0mm	60mm	1.93 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
