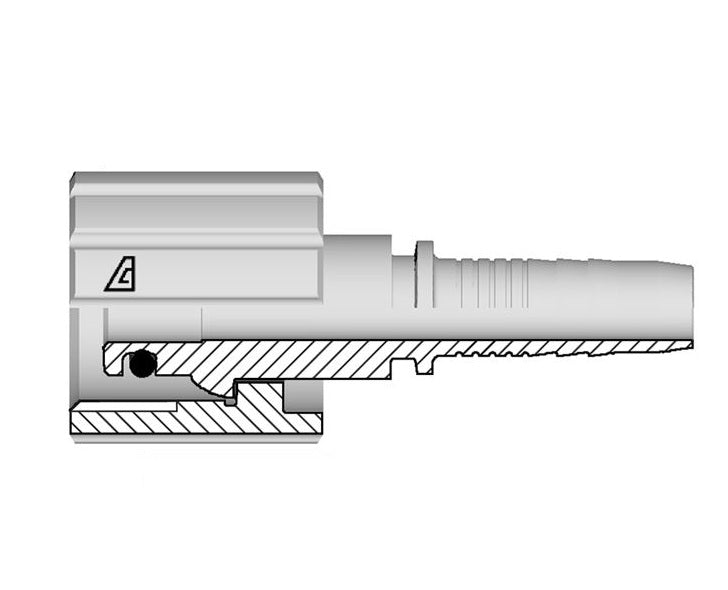

A-0522-FPWS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -05 Hose ID x M22 Pressure Wash Female (Type K) | Steel

A-0522-FPWS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -05 Hose ID x M22 Pressure Wash Female (Type K) | Steel

Save $4.33 Save $4.33
$15.16
$15.16 - $15.16
$15.16
$10.83
$10.83 - $10.83
$10.83

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Pressure Wash Female (Type K)
Specifications for Variant SKU: A-0522-FPWS Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Size C
Cut-Off Factor		 Hex Dia.
2		 Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) lbs/each
A-0422-FPWS 04 1/4" 6.4mm M22x1.5 34mm 27mm 0.15 lbs
A-0522-FPWS 05 5/16" 7.9mm M22x1.5 34mm 27mm 0.15 lbs
A-0622-FPWS 06 3/8" 9.5mm M22x1.5 34mm 27mm 0.16 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
