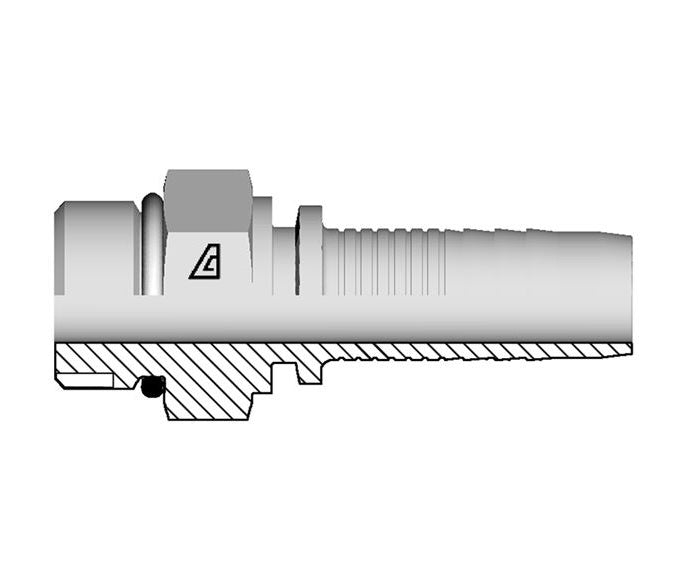

A-0606-MORB Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -06 Hose ID x -06 Male SAE O-Ring Boss | Steel | Pack of 5

Save $1.32

$4.62

$4.62 - $4.62

$4.62

$3.30

$3.30 - $3.30

$3.30

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male SAE O-Ring Boss

Specifications for Variant SKU: A-0606-MORB Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 3/8in Male O-Ring Boss
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH1	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	lbs/each
A-0404-MORB	04	1/4"	6.4mm	04	7/16-20	20.3mm	14mm	0.04 lbs
A-0405-MORB	04	1/4"	6.4mm	05	1/2-20	21.3mm	16mm	0.05 lbs
A-0406-MORB	04	1/4"	6.4mm	06	9/16-18	22.3mm	17mm	0.06 lbs
A-0606-MORB	06	3/8"	9.5mm	06	9/16-18	23.3mm	19mm	0.08 lbs
A-0608-MORB	06	3/8"	9.5mm	08	3/4-16	24.3mm	22mm	0.12 lbs
A-0610-MORB	06	3/8"	9.5mm	10	7/8-14	26.8mm	27mm	0.16 lbs
A-0808-MORB	08	1/2"	12.7mm	08	3/4-16	25.1mm	22mm	0.14 lbs
A-0810-MORB	08	1/2"	12.7mm	10	7/8-14	27.6mm	27mm	0.19 lbs
A-0812-MORB	08	1/2"	12.7mm	12	1-1/16-12	32.1mm	32mm	0.28 lbs
A-1008-MORB	10	5/8"	15.8mm	08	3/4-16	27.6mm	22mm	0.23 lbs
A-1010-MORB	10	5/8"	15.8mm	10	7/8-14	27.6mm	24mm	0.25 lbs
A-1012-MORB	10	5/8"	15.8mm	12	1-1/16-12	32.1mm	32mm	0.27 lbs
A-1210-MORB	12	3/4"	19.0mm	10	7/8-14	28.1mm	27mm	0.24 lbs
A-1212-MORB	12	3/4"	19.0mm	12	1-1/16-12	32.6mm	32mm	0.31 lbs
A-1216-MORB	12	3/4"	19.0mm	16	1-5/16-12	35.7mm	38mm	0.44 lbs
A-1616-MORB	16	1"	25.4mm	16	1-5/16-12	35.4mm	38mm	0.55 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
