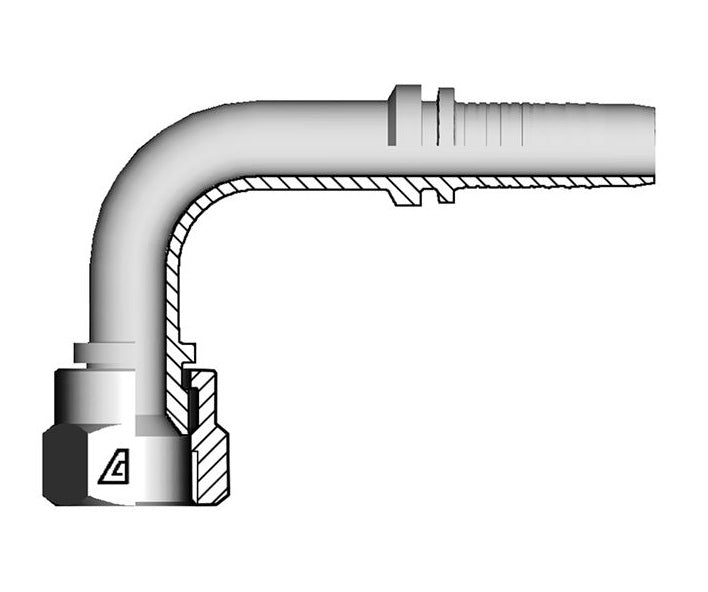

A-0808-FJ9L Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Long Drop | -08 Hose ID x -08 Female JIC 37° Swivel | Steel

A-0808-FJ9L Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Long Drop | -08 Hose ID x -08 Female JIC 37° Swivel | Steel | Pack of 5

Save $40.80 Save $40.80
$116.40
$116.40 - $116.40
$116.40
$75.60
$75.60 - $75.60
$75.60

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Long Drop | Hose Barb x Female JIC 37° Seat Swivel
Specifications for Variant SKU: A-0808-FJ9L Kuriyama | 5 |
Brand: Alfagomma
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Hose Barb, 1/2in Female JIC
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0404-FJ9L 04 1/4" 6.4mm 04 7/16-20 30.8mm 46mm 16mm 0.11 lbs
A-0405-FJ9L 04 1/4" 6.4mm 05 1/2-20 31.3mm 45mm 17mm 0.13 lbs
A-0406-FJ9L 04 1/4" 6.4mm 06 9/16-18 34.3mm 54mm 19mm 0.17 lbs
A-0506-FJ9L 05 5/16" 7.9mm 06 9/16-18 36.2mm 54mm 19mm 0.18 lbs
A-0606-FJ9L 06 3/8" 9.5mm 06 9/16-18 43.3mm 54mm 19mm 0.19 lbs
A-0608-FJ9L 06 3/8" 9.5mm 08 3/4-16 46.8mm 64mm 25mm 0.24 lbs
A-0808-FJ9L 08 1/2" 12.7mm 08 3/4-16 49.9mm 64mm 25mm 0.31 lbs
A-0810-FJ9L 08 1/2" 12.7mm 10 7/8-14 37.3mm 65mm 27mm 0.33 lbs
A-1010-FJ9L 10 5/8" 15.9mm 10 7/8-14 49.4mm 65mm 27mm 0.44 lbs
A-1012-FJ9L 10 5/8" 15.9mm 12 1-1/16-12 49.9mm 96mm 32mm 0.58 lbs
A-1212-FJ9L 12 3/4" 19.0mm 12 1-1/16-12 54.1mm 95mm 32mm 0.76 lbs
A-1216-FJ9L 12 3/4" 19.0mm 16 1-5/16-12 54.0mm 114mm 38mm 0.93 lbs
A-1616-FJ9L 16 1" 25.4mm 16 1-5/16-12 78.6mm 114mm 38mm 1.33 lbs
