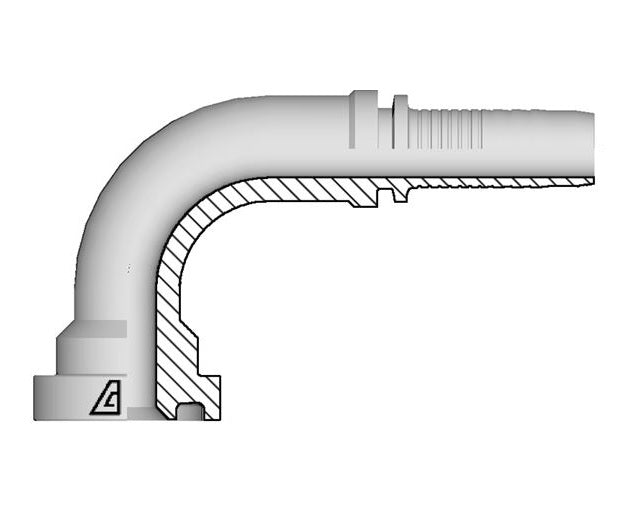

A-0812-C629 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -08 Hose ID x -12 Code 62 Flange | Steel

A-0812-C629 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -08 Hose ID x -12 Code 62 Flange | Steel

Save $10.73 Save $10.73
$37.55
$37.55 - $37.55
$37.55
$26.82
$26.82 - $26.82
$26.82

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | Hose Barb x Code 62 Flange
Specifications for Variant SKU: A-0812-C629 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Hose Barb, 3/4in Code 62 Flange
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max. Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
A-0808-C629 08 1/2" 12.7mm 1.25" 31.8mm 47.8mm 46mm 6000 PSI 0.33 lbs
A-0812-C629 08 1/2" 12.7mm 1.63" 41.3mm 47.8mm 54mm 6000 PSI 0.88 lbs
A-1212-C629 12 3/4" 19.0mm 1.63" 41.3mm 63.2mm 61mm 6000 PSI 0.62 lbs
A-1216-C629 12 3/4" 19.0mm 1.88" 47.6mm 63.2mm 66mm 6000 PSI 0.93 lbs
A-1616-C629 16 1" 25.4mm 1.88" 47.6mm 73.6mm 75mm 6000 PSI 1.05 lbs
A-1620-C629 16 1" 25.4mm 2.13" 54.0mm 77.6mm 78mm 6000 PSI 1.32 lbs
A-2020-C629 20 1-1/4" 31.8mm 2.13" 54.0mm 94.5mm 89mm 6000 PSI 1.59 lbs
A-2024-C629 20 1-1/4" 31.8mm 2.50" 63.5mm 98.0mm 94mm 6000 PSI 2.09 lbs
A-2424-C629 24 1-1/2" 38.1mm 2.50" 63.5mm 99.6mm 105mm 6000 PSI 2.57 lbs
A-2432-C629 24 1-1/2" 38.1mm 3.13" 79.4mm 114.7mm 123mm 6000 PSI 2.21 lbs
A-3232-C629 32 2" 50.8mm 3.13" 79.4mm 143.3mm 132mm 6000 PSI 2.32 lbs
