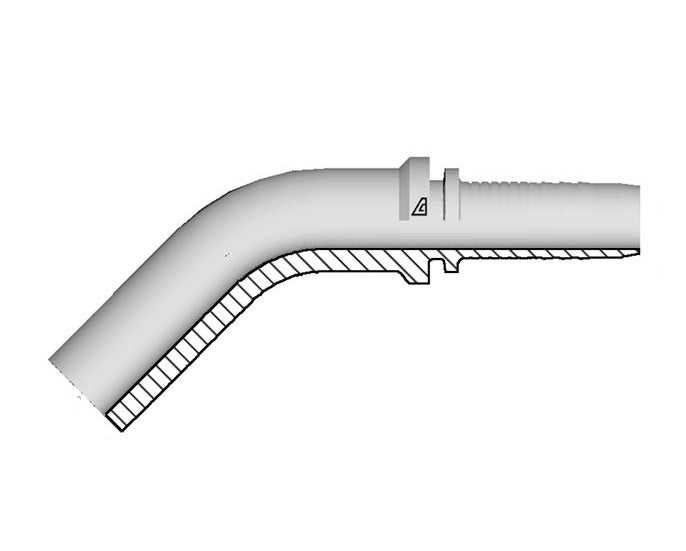

A-0816-MSP4 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Bent Tube | DIN 2353 | -08 Hose ID x M16 Metric Standpipe | Steel

A-0816-MSP4 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Bent Tube | DIN 2353 | -08 Hose ID x M16 Metric Standpipe | Steel

Save $4.30 Save $4.30
$15.06
$15.06 - $15.06
$15.06
$10.76
$10.76 - $10.76
$10.76

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Bent Tube | DIN 2353 | Hose Barb x Metric Standpipe
Specifications for Variant SKU: A-0816-MSP4 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Hose Barb, 16mm Tube Stub
Material(s): Steel
Applicable Specs & Approvals: DIN 2353
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size GI Tube OD C
Cut-Off Factor		 D
Drop		 Weight
Dash
Size		 (in.) (mm) (mm) (mm) (mm) lbs/each
A-0406-MSP4 04 1/4" 6.4mm 6mm 50.1mm 28.0mm 0.06 lbs
A-0408-MSP4 04 1/4" 6.4mm 8mm 43.2mm 23.0mm 0.05 lbs
A-0410-MSPS 04 1/4" 6.4mm 10mm 48.0mm 24.0mm 0.04 lbs
A-0610-MSP4 06 3/8" 9.5mm 10mm 48.5mm 24.0mm 0.11 lbs
A-0612-MSP4 06 3/8" 9.5mm 12mm 55.5mm 28.0mm 0.11 lbs
A-0815-MSP4 08 1/2" 12.7mm 15mm 62.6mm 28.5mm 0.17 lbs
A-0816-MSP4 08 1/2" 12.7mm 16mm 63.3mm 32.0mm 0.18 lbs
A-0818-MSP4 08 1/2" 12.7mm 18mm 72.0mm 30.5mm 0.20 lbs
A-1018-MSP4 10 5/8" 15.9mm 18mm 64.0mm 32.0mm 0.20 lbs
A-1022-MSP4 10 5/8" 15.9mm 22mm 72.0mm 37.0mm 0.25 lbs
A-1222-MSP4 12 3/4" 19.0mm 22mm 74.3mm 37.0mm 0.27 lbs
A-1225-MSP4 12 3/4" 19.0mm 25mm 83.0mm 44.0mm 0.40 lbs
A-1625-MSP4 16 1" 25.4mm 25mm 102.3mm 55.0mm 0.44 lbs
