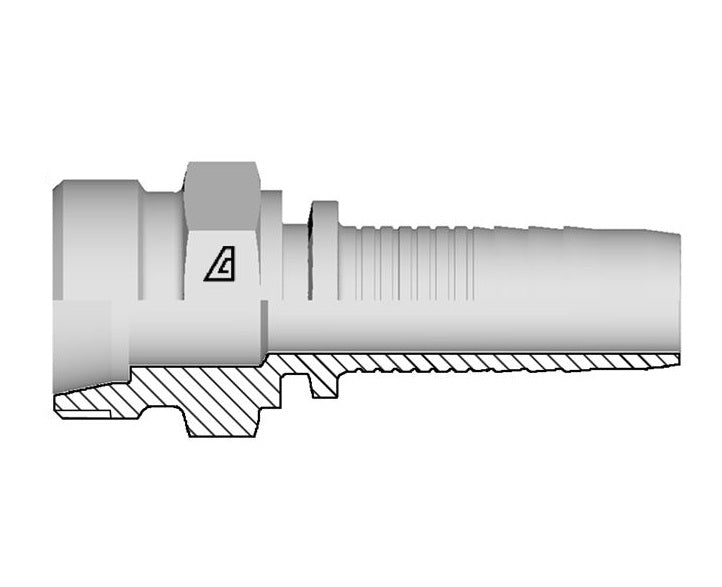

A-0826-MMSL Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3853 Light | -08 Hose ID x M26 Male Metric 24° Seat | Steel

Save $4.92

$17.22

$17.22 - $17.22

$17.22

$12.30

$12.30 - $12.30

$12.30

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3853 Light | Hose Barb x Male Metric 24° Seat

Specifications for Variant SKU: A-0826-MMSL Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Material(s):	Steel
Applicable Specs & Approvals:	DIN 3853
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	Hex Diameter CH1	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	lbs/each
A-0414-MMSL	04	1/4"	6.4mm	M14x1.5	8mm	22.3mm	14mm	0.04 lbs
A-0416-MMSL	04	1/4"	6.4mm	M16x1.5	10mm	23.3mm	17mm	0.06 lbs
A-0516-MMSL	05	5/16"	7.9mm	M16x1.5	10mm	23.3mm	17mm	0.06 lbs
A-0518-MMSL	05	5/16"	7.9mm	M18x1.5	12mm	23.3mm	19mm	0.07 lbs
A-0616-MMSL	06	3/8"	9.5mm	M16x1.5	10mm	23.3mm	17mm	0.07 lbs
A-0618-MMSL	06	3/8"	9.5mm	M18x1.5	12mm	23.3mm	19mm	0.08 lbs
A-0622-MMSL	06	3/8"	9.5mm	M22x1.5	15mm	25.3mm	22mm	0.11 lbs
A-0822-MMSL	08	1/2"	12.7mm	M22x1.5	15mm	26.1mm	22mm	0.13 lbs
A-0826-MMSL	08	1/2"	12.7mm	M26x1.5	18mm	27.1mm	27mm	0.19 lbs
A-1026-MMSL	10	5/8"	15.9mm	M26x1.5	18mm	27.1mm	27mm	0.19 lbs
A-1230-MMSL	12	3/4"	19.0mm	M30x2	22mm	29.6mm	32mm	0.26 lbs
A-1636-MMSL	16	1"	25.4mm	M36x2	28mm	33.4mm	36mm	0.42 lbs
A-2045-MMSL	20	1-1/4"	31.8mm	M45x2	35mm	40.0mm	46mm	0.79 lbs
A-2452-MMSL	24	1-1/2"	38.1mm	M52x2	42mm	40.5mm	60mm	0.88 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
