A-1018-MSP9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Bent Tube | DIN 2353 | -10 Hose ID x M18 Metric Standpipe | Steel

A-1018-MSP9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Bent Tube | DIN 2353 | -10 Hose ID x M18 Metric Standpipe | Steel

Save $4.58 Save $4.58
$16.02
$16.02 - $16.02
$16.02
$11.44
$11.44 - $11.44
$11.44

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Bent Tube | DIN 2353 | Hose Barb x Metric Standpipe
Specifications for Variant SKU: A-1018-MSP9 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Hose Barb, 18mm Tube Stub
Material(s): Steel
Applicable Specs & Approvals: DIN 2353
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
Hydraulic Hose Fittings

A-Series MSP9® 90° Elbow

Two-piece 90° elbow fitting with bent tube and DIN 2353 metric standpipe. Alfagomma Top Coat finish delivers 500+ hours corrosion protection for hydraulic hose assemblies.

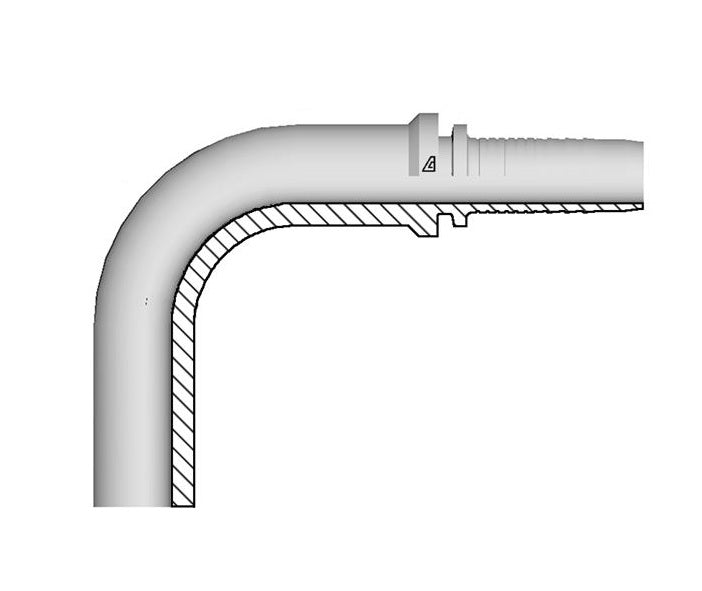

A-Series MSP9 90 degree elbow fitting dimensions diagram
⚙

Two-Piece Insert

For wire & textile braided hoses

✓

DIN 2353

Metric standpipe standard

★

500+ Hrs Salt Spray

Alfagomma Top Coat corrosion protection

♦

90° Bent Tube

Factory-formed elbow geometry

Compatibility & Finish

specs & ratings
Hose Compatibility All wire & textile braided hoses · Thermoplastic hose · Flexor 4 and PTFE hose 3/16"–2" · Alfabiotech 3000 (1-1/4" & 1-1/2") · Alfabiotech 4000 (3/8"–1-1/4") · Smaller-ID spiral wire reinforced hoses
Coating Alfagomma Top Coat Test Standards ASTM B117-03 & UNI ISO 9227
White Rust Resistance 500+ hours salt spray fog Red Rust Resistance 1000+ hours

Product Catalog

16 sizes
Part # Dash Hose ID Hose ID (mm) Tube OD C — Cut-Off D — Drop Weight
A-0406-MSP9 04 1/4" 6.4mm 6mm 25.4mm 36mm 0.04 lbs
A-0408-MSP9 04 1/4" 6.4mm 8mm 25.9mm 44mm 0.06 lbs
A-0410-MSP9 04 1/4" 6.4mm 10mm 30.6mm 42mm 0.08 lbs
A-0610-MSP9 06 3/8" 9.5mm 10mm 30.7mm 42mm 0.08 lbs
A-0612-MSP9 06 3/8" 9.5mm 12mm 35.0mm 50mm 0.13 lbs
A-0815-MSP9 08 1/2" 12.7mm 15mm 44.7mm 57.0mm 0.17 lbs
A-0816-MSP9 08 1/2" 12.7mm 16mm 43.7mm 64.0mm 0.24 lbs
A-0818-MSP9 08 1/2" 12.7mm 18mm 58.1mm 59.0mm 0.37 lbs
A-1018-MSP9 10 5/8" 15.9mm 18mm 52.2mm 58.0mm 0.27 lbs
A-1020-MSP9 10 5/8" 15.9mm 20mm 62.6mm 70.0mm 0.45 lbs
A-1022-MSP9 10 5/8" 15.9mm 22mm 49.4mm 64.0mm 0.35 lbs
A-1220-MSP9 12 3/4" 19.0mm 20mm 63.4mm 70.0mm 0.38 lbs
A-1222-MSP9 12 3/4" 19.0mm 22mm 53.1mm 67.5mm 0.44 lbs
A-1625-MSP9 16 1" 25.4mm 25mm 73.1mm 98.5mm 0.82 lbs
A-1628-MSP9 16 1" 25.4mm 28mm 73.1mm 89.5mm 0.88 lbs
A-1630-MSP9 16 1" 25.4mm 30mm 73.1mm 102.5mm 1.47 lbs
