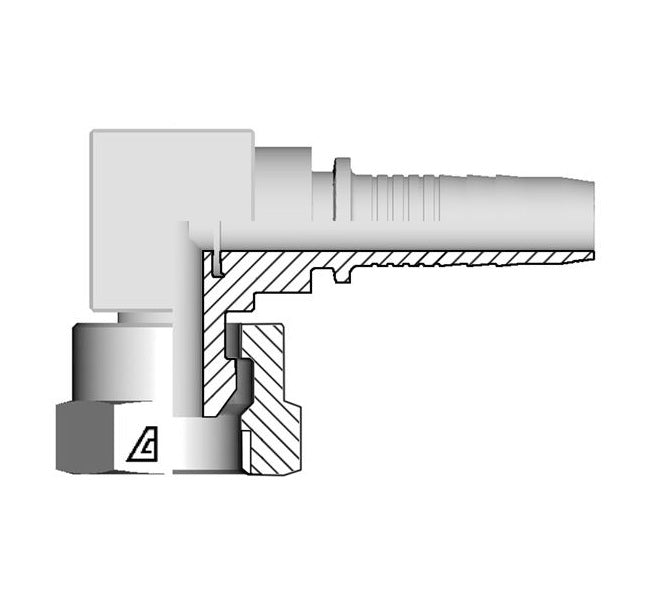

A-1212-FBC9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | -12 Hose ID x -12 Female BSPP 60° Cone | Steel

Save $11.44

$40.03

$40.03 - $40.03

$40.03

$28.59

$28.59 - $28.59

$28.59

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | Hose Barb x Female BSP 60° Cone

Specifications for Variant SKU: A-1212-FBC9 Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in Female BSPP
Material(s):	Steel
Special Properties:	Compact Elbow
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
A-0404-FBC9	04	1/4"	6.4mm	04	1/4-19	16.8mm	19.5mm	19mm	0.11 lbs
A-0606-FBC9	06	3/8"	9.5mm	06	3/8-19	19.5mm	21.5mm	22mm	0.20 lbs
A-0808-FBC9	08	1/2"	12.7mm	08	1/2-14	22.2mm	22.5mm	27mm	0.31 lbs
A-1212-FBC9	12	3/4"	19.0mm	12	3/4-14	26.7mm	31.0mm	32mm	0.39 lbs
A-1616-FBC9	16	1"	25.4mm	16	1-11	34.5mm	27.5mm	38mm	0.47 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
