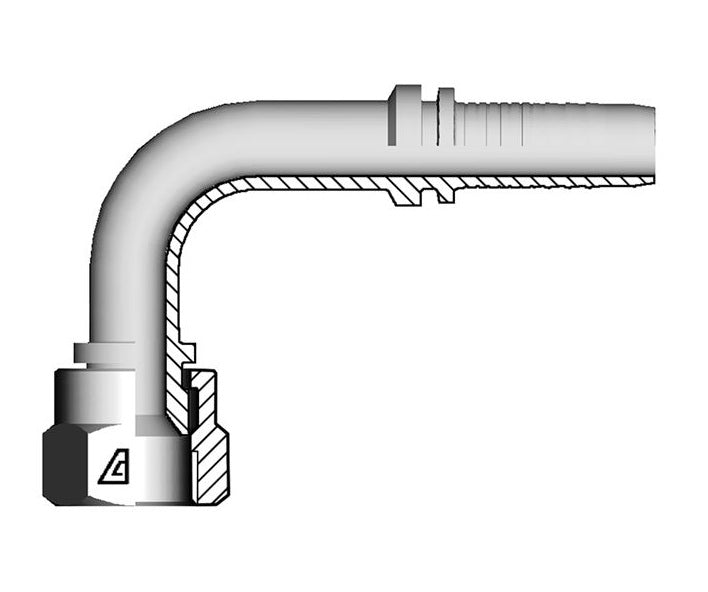

A-1212-FJ9S Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Short Drop | -12 Hose ID x -12 Female JIC 37° Swivel | Steel

A-1212-FJ9S Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Short Drop | -12 Hose ID x -12 Female JIC 37° Swivel | Steel

Save $5.33 Save $5.33
$18.65
$18.65 - $18.65
$18.65
$13.32
$13.32 - $13.32
$13.32

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Short Drop | Hose Barb x Female JIC 37° Seat Swivel
Specifications for Variant SKU: A-1212-FJ9S Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Hose Barb, 3/4in Female JIC
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0304-FJ9S 03 3/16" 4.8mm 04 7/16-20 26.7mm 21.0mm 16mm 0.08 lbs
A-0404-FJ9S 04 1/4" 6.4mm 04 7/16-20 27.0mm 21.0mm 16mm 0.08 lbs
A-0405-FJ9S 04 1/4" 6.4mm 05 1/2-20 26.5mm 23.5mm 17mm 0.10 lbs
A-0406-FJ9S 04 1/4" 6.4mm 06 9/16-18 31.0mm 23.0mm 19mm 0.10 lbs
A-0506-FJ9S 05 5/16" 7.9mm 06 9/16-18 42.7mm 23.0mm 19mm 0.12 lbs
A-0606-FJ9S 06 3/8" 9.5mm 06 9/16-18 42.3mm 23.0mm 19mm 0.13 lbs
A-0608-FJ9S 06 3/8" 9.5mm 08 3/4-16 48.8mm 29.0mm 25mm 0.20 lbs
A-0808-FJ9S 08 1/2" 12.7mm 08 3/4-16 46.4mm 29.0mm 25mm 0.25 lbs
A-0810-FJ9S 08 1/2" 12.7mm 10 7/8-14 45.8mm 32.0mm 27mm 0.28 lbs
A-0812-FJ9S 08 1/2" 12.7mm 12 1-1/16-12 37.3mm 46.0mm 32mm 0.38 lbs
A-1010-FJ9S 10 5/8" 15.9mm 10 7/8-14 36.5mm 32.0mm 27mm 0.41 lbs
A-1012-FJ9S 10 5/8" 15.9mm 12 1-1/16-12 47.9mm 48.0mm 32mm 0.46 lbs
A-1212-FJ9S 12 3/4" 19.0mm 12 1-1/16-12 58.2mm 46.0mm 32mm 0.63 lbs
A-1214-FJ9S 12 3/4" 19.0mm 14 1-3/16-12 52.4mm 47.0mm 36mm 0.64 lbs
A-1216-FJ9S 12 3/4" 19.0mm 16 1-5/16-12 53.6mm 53.0mm 38mm 0.73 lbs
A-1416-FJ9S 14 7/8" 22.2mm 16 1-5/16-12 53.6mm 53.0mm 38mm 0.77 lbs
A-1616-FJ9S 16 1" 25.4mm 16 1-5/16-12 70.9mm 56.0mm 38mm 0.89 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
