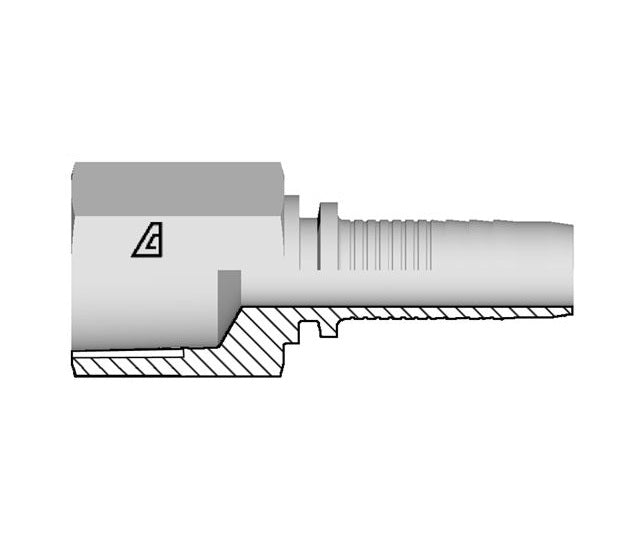

A-1616-FNPR Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -16 Hose ID x -16 Female NPTF Rigid | Steel

Name: A-1616-FNPR Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -16 Hose ID x -16 Female NPTF Rigid | Steel
Brand: Kuriyama
SKU: A-1616-FNPR Kuriyama
Price: 28.15 USD
Availability: InStock

Save $11.26

$39.41

$39.41 - $39.41

$39.41

$28.15

$28.15 - $28.15

$28.15

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female NPTF Rigid

Specifications for Variant SKU: A-1616-FNPR Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 1in Female NPTF
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	lbs/each
A-0404-FNPR	04	1/4"	6.4mm	04	1/4-18	27.8mm	19mm	0.10 lbs
A-0606-FNPR	06	3/8"	9.5mm	06	3/8-18	28.8mm	22mm	0.17 lbs
A-0808-FNPR	08	1/2"	12.7mm	08	1/2-14	35.6mm	25mm	0.20 lbs
A-1212-FNPR	12	3/4"	19.0mm	12	3/4-14	38.1mm	32mm	0.35 lbs
A-1616-FNPR	16	1"	25.4mm	16	1-11-1/2	44.9mm	38mm	0.57 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
