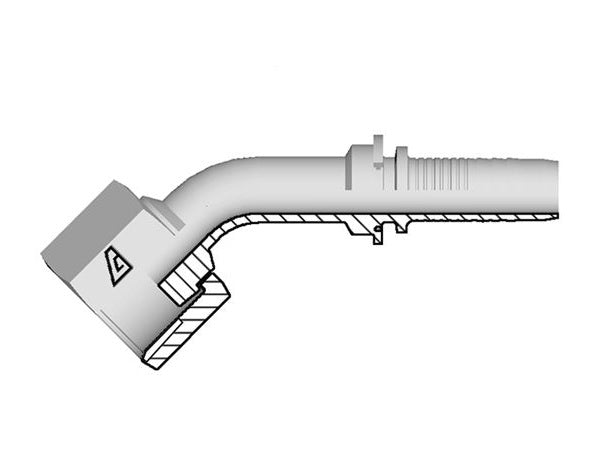

A-1616-FO45 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -16 Hose ID x -16 Female O-Ring Face Seal Swivel | Steel

Save $10.80

$37.80

$37.80 - $37.80

$37.80

$27.00

$27.00 - $27.00

$27.00

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female O-Ring Face Seal Swivel

Specifications for Variant SKU: A-1616-FO45 Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	45 Degree
Ends Configuration:	1in Hose Barb, 1in Female O-Ring Face Seal
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
A-0404-FO45	04	1/4"	6.4mm	04	9/16-18	41.1mm	11.0mm	17mm	0.08 lbs
A-0406-FO45	04	1/4"	6.4mm	06	11/16-16	46.1mm	11.0mm	22mm	0.12 lbs
A-0606-FO45	06	3/8"	9.5mm	06	11/16-16	47.4mm	12.0mm	22mm	0.14 lbs
A-0608-FO45	06	3/8"	9.5mm	08	13/16-16	51.2mm	15.0mm	24mm	0.19 lbs
A-0808-FO45	08	1/2"	12.7mm	08	13/16-16	47.1mm	16.0mm	24mm	0.29 lbs
A-0810-FO45	08	1/2"	12.7mm	10	1-14	50.4mm	16.5mm	30mm	0.29 lbs
A-0812-FO45	08	1/2"	12.7mm	12	1-3/16-12	53.1mm	16.5mm	36mm	0.31 lbs
A-1010-FO45	10	5/8"	15.9mm	10	1-14	57.7mm	17.0mm	30mm	0.33 lbs
A-1012-FO45	10	5/8"	15.9mm	12	1-3/16-12	60.1mm	17.0mm	36mm	0.38 lbs
A-1212-FO45	12	3/4"	19.0mm	12	1-3/16-12	63.5mm	21.0mm	36mm	0.60 lbs
A-1216-FO45	12	3/4"	19.0mm	16	1-7/16-12	70.7mm	24.0mm	41mm	1.01 lbs
A-1616-FO45	16	1"	25.4mm	16	1-7/16-12	82.4mm	26.0mm	41mm	0.90 lbs
A-2020-FO45	20	1-1/4"	31.8mm	20	1-11/16-12	97.4mm	26.0mm	50mm	1.25 lbs
A-2424-FO45	24	1-1/2"	38.1mm	24	2-12	105.5mm	28.0mm	60mm	1.68 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
