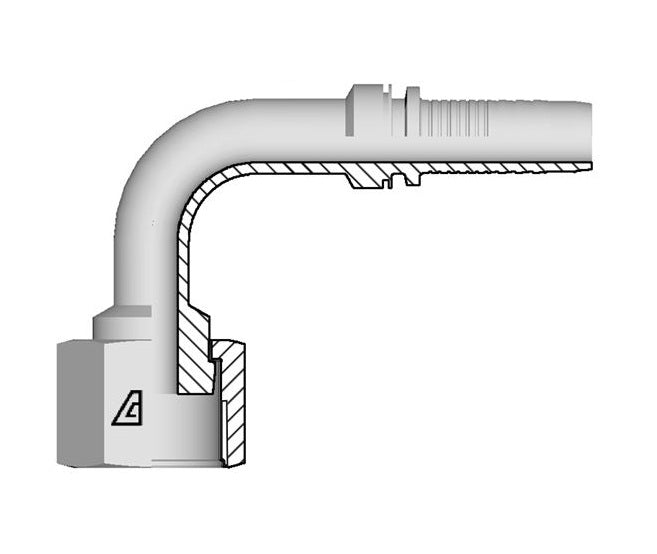

A-1616-FO9L Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Long Drop | -16 Hose ID x -16 Female O-Ring Face Seal Swivel | Steel

A-1616-FO9L Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Long Drop | -16 Hose ID x -16 Female O-Ring Face Seal Swivel | Steel

Save $19.77 Save $19.77
$69.20
$69.20 - $69.20
$69.20
$49.43
$49.43 - $49.43
$49.43

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Long Drop | Hose Barb x Female O-Ring Face Seal Swivel
Specifications for Variant SKU: A-1616-FO9L Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Hose Barb, 1in Female O-Ring Face Seal
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0404-FO9L 04 1/4" 6.4mm 04 9/16-18 32.8mm 46mm 17mm 0.11 lbs
A-0406-FO9L 04 1/4" 6.4mm 06 11/16-16 34.8mm 54mm 22mm 0.16 lbs
A-0506-FO9L 05 5/16" 7.9mm 06 11/16-16 31.5mm 54mm 22mm 0.19 lbs
A-0606-FO9L 06 3/8" 9.5mm 06 11/16-16 41.8mm 54mm 22mm 0.19 lbs
A-0608-FO9L 06 3/8" 9.5mm 08 13/16-16 46.8mm 64mm 24mm 0.24 lbs
A-0808-FO9L 08 1/2" 12.7mm 08 13/16-16 38.3m 64mm 24mm 0.27 lbs
A-0810-FO9L 08 1/2" 12.7mm 10 1-14 46.3mm 70mm 30mm 0.39 lbs
A-1010-FO9L 10 5/8" 15.9mm 10 1-14 55.4mm 70mm 30mm 0.48 lbs
A-1012-FO9L 10 5/8" 15.9mm 12 1-3/16-12 55.4mm 96mm 30mm 0.41 lbs
A-1212-FO9L 12 3/4" 19.0mm 12 1-3/16-12 61.6mm 96mm 36mm 0.80 lbs
A-1216-FO9L 12 3/4" 19.0mm 16 1-7/16-12 61.6mm 118mm 41mm 0.95 lbs
A-1616-FO9L 16 1" 25.4mm 16 1-7/16-12 82.6mm 114mm 41mm 1.28 lbs
A-2020-FO9L 20 1-1/4" 31.8mm 20 1-11/16-12 97.0mm 129mm 50mm 1.95 lbs
A-2424-FO9L 24 1-1/2" 38.1mm 24 2-12 110.8mm 141mm 60mm 2.75 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
