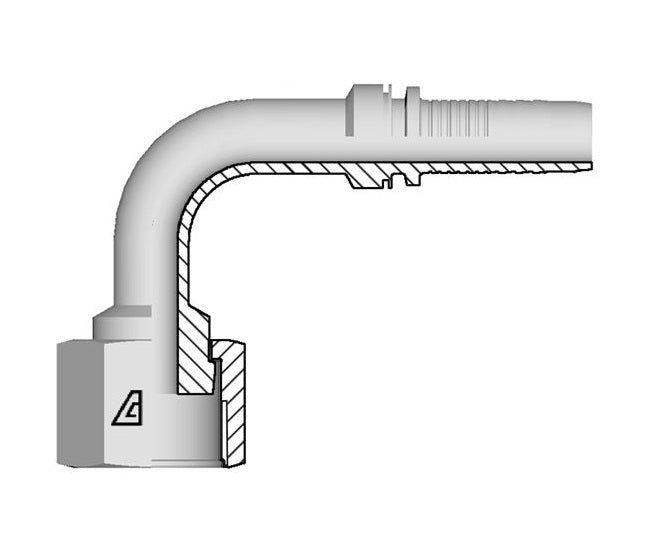

A-1616-FO9S Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Short Drop | -16 Hose ID x -16 Female O-Ring Face Seal Swivel | Steel

A-1616-FO9S Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Short Drop | -16 Hose ID x -16 Female O-Ring Face Seal Swivel | Steel

Save $11.41 Save $11.41
$39.93
$39.93 - $39.93
$39.93
$28.52
$28.52 - $28.52
$28.52

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Short Drop | Hose Barb x Female O-Ring Face Seal Swivel
Specifications for Variant SKU: A-1616-FO9S Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Hose Barb, 1in Female O-Ring Face Seal
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0404-FO9S 04 1/4" 6.4mm 04 9/16-18 28.5mm 21.0mm 17mm 0.08 lbs
A-0406-FO9S 04 1/4" 6.4mm 06 11/16-16 32.0mm 23.0mm 22mm 0.13 lbs
A-0506-FO9S 05 5/16" 7.9mm 06 11/16-16 48.7mm 26.0mm 22mm 0.15 lbs
A-0606-FO9S 06 3/8" 9.5mm 06 11/16-16 41.8mm 25.0mm 22mm 0.15 lbs
A-0608-FO9S 06 3/8" 9.5mm 08 13/16-16 41.8mm 29.0mm 24mm 0.19 lbs
A-0808-FO9S 08 1/2" 12.7mm 08 13/16-16 39.8mm 29.0mm 24mm 0.23 lbs
A-0810-FO9S 08 1/2" 12.7mm 10 1-14 46.3mm 32.5mm 30mm 0.31 lbs
A-0812-FO9S 08 1/2" 12.7mm 12 1-3/16-12 56.3mm 51.0mm 36mm 0.37 lbs
A-1010-FO9S 10 5/8" 15.9mm 10 1-14 52.3mm 32.5mm 30mm 0.37 lbs
A-1012-FO9S 10 5/8" 15.9mm 12 1-3/16-12 55.4mm 49.0mm 36mm 0.39 lbs
A-1212-FO9S 12 3/4" 19.0mm 12 1-3/16-12 60.6mm 51.0mm 36mm 0.66 lbs
A-1216-FO9S 12 3/4" 19.0mm 16 1-7/16-12 61.6mm 56.0mm 41mm 0.84 lbs
A-1612-FO9S 16 1" 25.4mm 12 1-3/16-12 82.6mm 58.0mm 41mm 0.96 lbs
A-1616-FO9S 16 1" 25.4mm 16 1-7/16-12 82.6mm 58.0mm 41mm 1.03 lbs
A-1620-FO9S 16 1" 25.4mm 20 1-11/16-12 82.6mm 64.0mm 50mm 1.48 lbs
A-2020-FO9S 20 1-1/4" 31.8mm 20 1-11/16-12 95.0mm 68.0mm 50mm 1.57 lbs
A-2424-FO9S 24 1-1/2" 38.1mm 24 2-12 101.6mm 78.0mm 60mm 2.18 lbs
