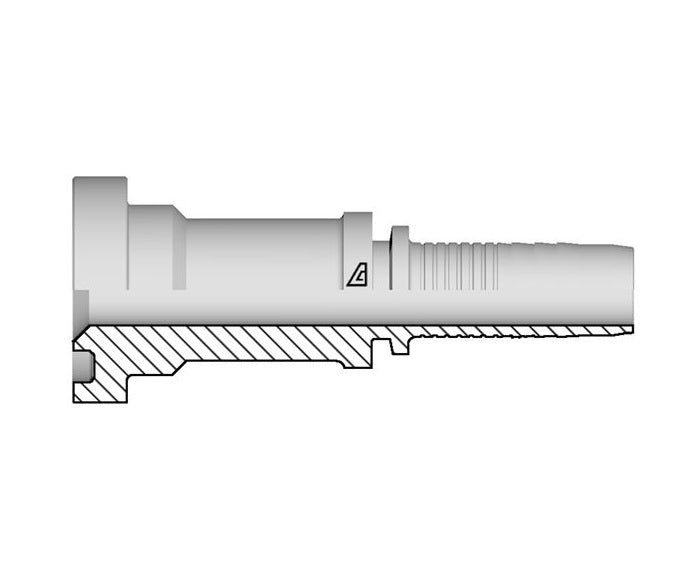

A-1620-C62S Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | -16 Hose ID x -20 Code 62 Flange | Steel

Save $13.28

$46.49

$46.49 - $46.49

$46.49

$33.21

$33.21 - $33.21

$33.21

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 62 Flange

Specifications for Variant SKU: A-1620-C62S Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 1-1/4in Code 62 Flange
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Max. Working Pressure	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	PSI	lbs/each
A-0808-C62S	08	1/2"	12.7mm	1.25"	31.8mm	46.6mm	6000 PSI	0.50 lbs
A-0812-C62S	08	1/2"	12.7mm	1.63"	41.3mm	67.2mm	6000 PSI	0.52 lbs
A-1212-C62S	12	3/4"	19.0mm	1.63"	41.3mm	52.5mm	6000 PSI	0.54 lbs
A-1216-C62S	12	3/4"	19.0mm	1.88"	47.6mm	55.5mm	6000 PSI	0.70 lbs
A-1616-C62S	16	1"	25.4mm	1.88"	47.6mm	56.4mm	6000 PSI	0.81 lbs
A-1620-C62S	16	1"	25.4mm	1.88"	54.0mm	63.4mm	6000 PSI	1.08 lbs
A-2020-C62S	20	1-1/4"	31.8mm	2.13"	54.0mm	83.0mm	6000 PSI	1.45 lbs
A-2024-C62S	20	1-1/4"	31.8mm	2.13"	63.5mm	71.0mm	6000 PSI	1.88 lbs
A-2424-C62S	24	1-1/2"	38.1mm	2.50"	63.5mm	101.0mm	6000 PSI	2.05 lbs
A-2432-C62S	24	1-1/2"	38.1mm	2.50"	79.4mm	76.0mm	6000 PSI	2.87 lbs
A-3232-C62S	32	2"	50.8mm	3.13"	79.4mm	76.0mm	6000 PSI	3.53 lbs
