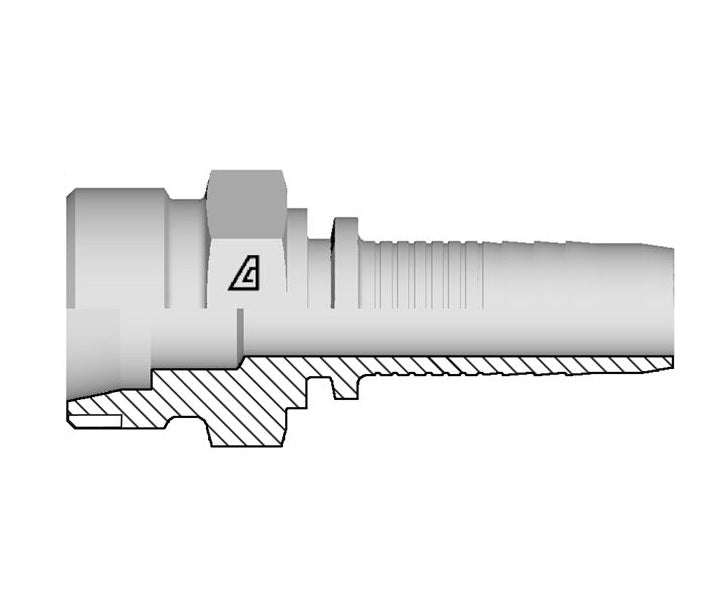

A-1642-MMSH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3853 Heavy | -16 Hose ID x M42 Male Metric 24° Seat | Steel

Save $10.24

$35.85

$35.85 - $35.85

$35.85

$25.61

$25.61 - $25.61

$25.61

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3853 Heavy | Hose Barb x Male Metric 24° Seat

Specifications for Variant SKU: A-1642-MMSH Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Material(s):	Steel
Applicable Specs & Approvals:	DIN 3853
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	Hex Diameter CH1	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	lbs/each
A-0414-MMSH	04	1/4"	6.4mm	M14x1.5	6mm	24.3mm	17mm	0.06 lbs
A-0416-MMSH	04	1/4"	6.4mm	M16x1.5	8mm	24.3mm	17mm	0.06 lbs
A-0418-MMSH	04	1/4"	6.4mm	M18x1.5	10mm	25.3mm	19mm	0.07 lbs
A-0520-MMSH	05	5/16"	7.9mm	M20x1.5	12mm	25.3mm	22mm	0.10 lbs
A-0620-MMSH	06	3/8"	9.5mm	M20x1.5	12mm	25.3mm	22mm	0.11 lbs
A-0622-MMSH	06	3/8"	9.5mm	M22x1.5	14mm	27.3mm	22mm	0.12 lbs
A-0824-MMSH	08	1/2"	12.7mm	M24x1.5	16mm	29.1mm	24mm	0.15 lbs
A-1030-MMSH	10	5/8"	15.9mm	M30x2	20mm	33.1mm	32mm	0.26 lbs
A-1236-MMSH	12	3/4"	19.0mm	M36x2	25mm	37.6mm	36mm	0.41 lbs
A-1642-MMSH	16	1"	25.4mm	M42x2	30mm	42.4mm	46mm	0.76 lbs
A-2052-MMSH	20	1-1/4"	31.8mm	M52x2	38mm	48.0mm	55mm	1.15 lbs
