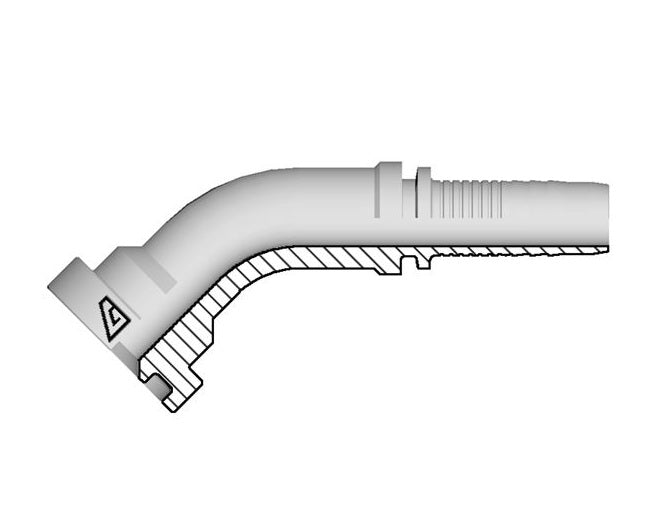

A-2024-C624 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -20 Hose ID x -24 Code 62 Flange | Steel

A-2024-C624 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -20 Hose ID x -24 Code 62 Flange | Steel

Save $48.83 Save $48.83
$170.91
$170.91 - $170.91
$170.91
$122.08
$122.08 - $122.08
$122.08

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 45° Elbow | Hose Barb x Code 62 Flange
Specifications for Variant SKU: A-2024-C624 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Hose Barb, 1-1/2in Code 62 Flange
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max. Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
A-0808-C624 08 1/2" 12.7mm 1.25" 31.8mm 46.6mm 23.0mm 6000 PSI 0.30 lbs
A-0812-C624 08 1/2" 12.7mm 1.63" 41.3mm 67.2mm 30.5mm 6000 PSI 0.55 lbs
A-1212-C624 12 3/4" 19.0mm 1.63" 41.3mm 71.4mm 31.0mm 6000 PSI 0.60 lbs
A-1216-C624 12 3/4" 19.0mm 1.88" 47.6mm 65.2mm 33.5mm 6000 PSI 0.78 lbs
A-1616-C624 16 1" 25.4mm 1.88" 47.6mm 81.9mm 36.0mm 6000 PSI 0.94 lbs
A-1620-C624 16 1" 25.4mm 2.13" 54.0mm 78.4mm 39.0mm 6000 PSI 1.22 lbs
A-2020-C624 20 1-1/4" 31.8mm 2.13" 54.0mm 90.9mm 40.0mm 6000 PSI 1.65 lbs
A-2024-C624 20 1-1/4" 31.8mm 2.50" 63.5mm 93.6mm 45.5mm 6000 PSI 1.98 lbs
A-2424-C624 24 1-1/2" 38.1mm 2.50" 63.5mm 101.7mm 45.0mm 6000 PSI 2.43 lbs
A-3232-C624 32 2" 50.8mm 3.13" 79.4mm 129.7mm 60.0mm 6000 PSI 4.09 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
