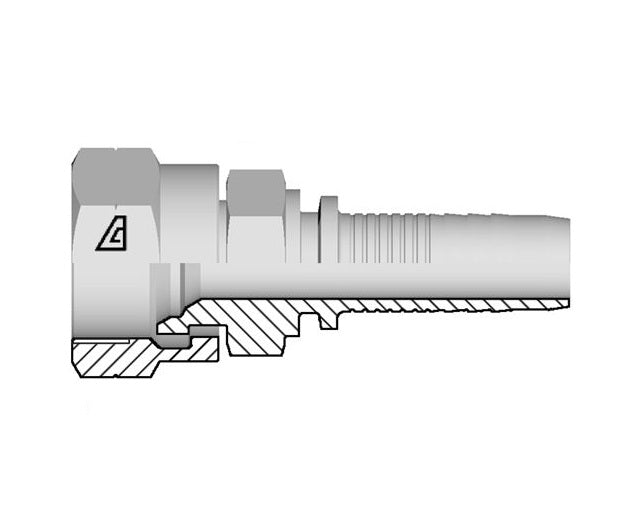

A-2036-FKOS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -20 Hose ID x M36 Female Komatsu | Steel

Name: A-2036-FKOS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -20 Hose ID x M36 Female Komatsu | Steel
Brand: Kuriyama
SKU: A-2036-FKOS Kuriyama
Price: 49.71 USD
Availability: InStock

Save $19.88

$69.59

$69.59 - $69.59

$69.59

$49.71

$49.71 - $49.71

$49.71

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female Komatsu

Specifications for Variant SKU: A-2036-FKOS Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Hose Barb, 36mm Female Komatsu
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread Size	C Cut-Off Factor	Hex Dia. CH1	Hex Dia. CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	lbs/each
A-0414-FKOS	04	1/4"	6.4mm	M14x1.5	20.7mm	17mm	19mm	0.09 lbs
A-0618-FKOS	06	3/8"	9.5mm	M18x1.5	22.8mm	19mm	22mm	0.13 lbs
A-0822-FKOS	08	1/2"	12.7mm	M22x1.5	24.6mm	22mm	27mm	0.20 lbs
A-1024-FKOS	10	5/8"	15.9mm	M24x1.5	29.2mm	30mm	32mm	0.40 lbs
A-1230-FKOS	12	3/4"	19.0mm	M30x1.5	27.5mm	30mm	36mm	0.44 lbs
A-1633-FKOS	16	1"	25.4mm	M33x1.5	35.7mm	36mm	41mm	0.77 lbs
A-2036-FKOS	20	1-1/4"	31.8mm	M36x1.5	43.5mm	46mm	46mm	1.29 lbs
A-2442-FKOS	24	1-1/2"	38.1mm	M42x1.5	44.0mm	55mm	55mm	1.93 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
