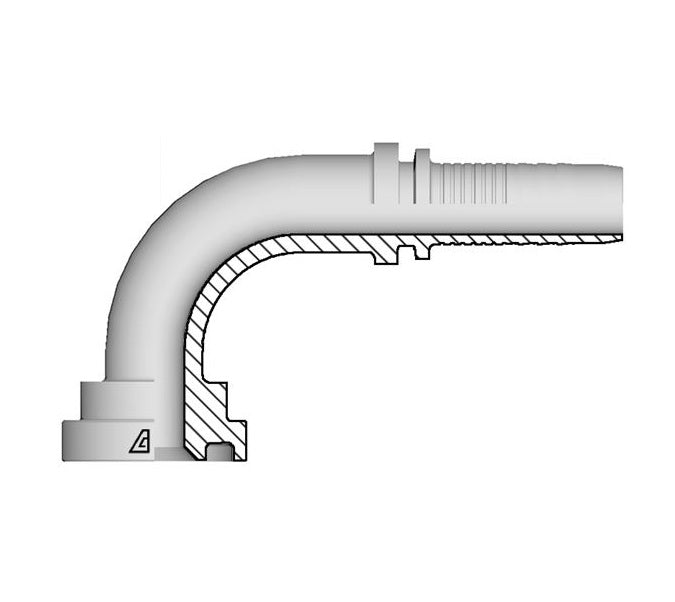

A-2432-C619 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -24 Hose ID x -32 Code 61 Flange | Steel

Save $52.73

$184.55

$184.55 - $184.55

$184.55

$131.82

$131.82 - $131.82

$131.82

Specifications for Variant SKU: A-2432-C619 Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Hose Barb, 2in Code 61 Flange
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	Max. Working Pressure	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	(mm)	PSI	lbs/each
A-0808-C619	08	1/2"	12.7mm	1.19"	30.2mm	45.8mm	42.0mm	5000 PSI	0.29 lbs
A-0812-C619	08	1/2"	12.7mm	1.50"	38.1mm	45.3mm	51.0mm	5000 PSI	0.43 lbs
A-1012-C619	10	5/8"	15.9mm	1.50"	38.1mm	49.4mm	51.0mm	5000 PSI	0.55 lbs
A-1212-C619	12	3/4"	19.0mm	1.50"	38.1mm	57.7mm	60.0mm	5000 PSI	0.65 lbs
A-1216-C619	12	3/4"	19.0mm	1.75"	44.5mm	66.2mm	64.5mm	5000 PSI	0.71 lbs
A-1616-C619	16	1"	25.4mm	1.75"	44.5mm	70.6mm	67.0mm	5000 PSI	0.88 lbs
A-1620-C619	16	1"	25.4mm	2.00"	50.8mm	73.6mm	71.0mm	4000 PSI	1.02 lbs
A-2020-C619	20	1-1/4"	31.8mm	2.00"	50.8mm	88.0mm	84.0mm	4000 PSI	1.30 lbs
A-2024-C619	20	1-1/4"	31.8mm	2.38"	60.3mm	91.5mm	87.5mm	3000 PSI	1.48 lbs
A-2424-C619	24	1-1/2"	38.1mm	2.38"	60.3mm	104.8mm	91.0mm	3000 PSI	1.26 lbs
A-2432-C619	24	1-1/2"	38.1mm	2.81"	71.4mm	104.8mm	115.0mm	3000 PSI	2.66 lbs
A-3232-C619	32	2"	50.8mm	2.81"	71.4mm	127.2mm	130.0mm	3000 PSI	4.30 lbs
A-4040-C619	40	2-1/2"	63.5mm	3.31"	84.1mm	137.0mm	125.0mm	2500 PSI	4.80 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
