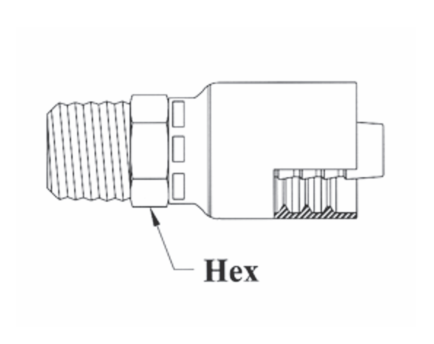

A01-6x8 Couplamatic A Series Coupling - NPTF - Male Solid - 3/8" Hose ID - 1/2-14 Thread

A01-6x8 by Couplamatic | A Series Coupling | 3/8" Hose ID x 1/2-14 Thread NPTF Male Solid | Straight

Save $0.55 Save $0.55
$5.00
$5.00 - $5.00
$5.00
$4.45
$4.45 - $4.45
$4.45

Couplamatic Systems Inc.
A Series - NPTF - Male Solid
Specifications for Variant SKU: A01-6x8 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A01-4x2 1/4" 1/8" 1/8-27 9/16" 1AA2MP4 04Z-102
A01-4x4 1/4" 1/4" 1/4-18 9/16" 1AA4MP4 04Z-104
A01-4x6 1/4" 3/8" 3/8-18 11/16" 1AA6MP4 04Z-106
A01-4x8 1/4" 1/2" 1/2-14 7/8" 1AA8MP4 04Z-108
A01-6x4 3/8" 1/4" 1/4-18 3/4" 1AA4MP6 06Z-104
A01-6x6 3/8" 3/8" 3/8-18 3/4" 1AA6MP6 06Z-106
A01-6x8 3/8" 1/2" 1/2-14 7/8" 1AA8MP6 06Z-108
A01-8x6 1/2" 3/8" 3/8-18 7/8" 1AA6MP8 08Z-106
A01-8x8 1/2" 1/2" 1/2-14 7/8" 1AA8MP8 08Z-108
A01-8x12 1/2" 3/4" 3/4-14 1-1/8" 1AA12MP8 08Z-112
A01-10x8 5/8" 1/2" 1/2-14 15/16" 1AA8MP10 10Z-108
A01-10x12 5/8" 3/4" 3/4-14 1-1/8" 1AA12MP10 10Z-112
A01-12x8 3/4" 1/2" 1/2-14 1-1/8" 1AA8MP12 12Z-108
A01-12x12 3/4" 3/4" 3/4-14 1-1/8" 1AA12MP12 12Z-112
A01-12x16 3/4" 1" 1-11-1/2 1-3/8" 1AA16MP12 12Z-116
A01-16x12 1" 3/4" 3/4-14 1-3/8" - 16Z-112
A01-16x16 1" 1" 1-11-1/2 1-3/8" 1AA16MP16 16Z-116
A01-20x20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 1AV20MP20 20Z-120

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
