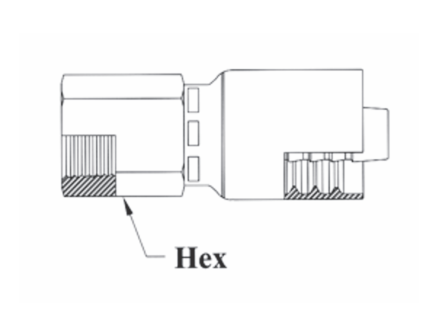

A02-8x8 Couplamatic A Series Coupling - NPTF - Female Solid - 1/2" Hose ID - 1/2-14 Thread

A02-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 1/2-14 Thread Female Solid NPTF | Straight

Save $4.41 Save $4.41
$11.03
$11.03 - $11.03
$11.03
$6.62
$6.62 - $6.62
$6.62

Couplamatic Systems Inc.
A Series - NPTF - Female Solid
Specifications for Variant SKU: A02-8x8 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPTF, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A02-4x2 1/4" 1/8" 1/8-27 5/8" 1AA2FP4 04Z-202
A02-4x4 1/4" 1/4" 1/4-18 3/4" 1AA4FP4 04Z-204
A02-6x4 3/8" 1/4" 1/4-18 3/4" 1AA4FP6 06Z-204
A02-6x6 3/8" 3/8" 3/8-18 7/8" 1AA6FP6 06Z-206
A02-8x8 1/2" 1/2" 1/2-14 1" 1AA8FP8 08Z-208

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
