A05-12x12 Couplamatic A Series Coupling - NPSM - Female Swivel - 3/4" Hose ID - 3/4-14 Thread

A05-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x 3/4-14 Thread Female Swivel NPSM | Straight

Save $1.47 Save $1.47
$13.24
$13.24 - $13.24
$13.24
$11.77
$11.77 - $11.77
$11.77

Couplamatic Systems Inc.
A Series - NPSM - Female Swivel
Specifications for Variant SKU: A05-12x12 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPSM, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

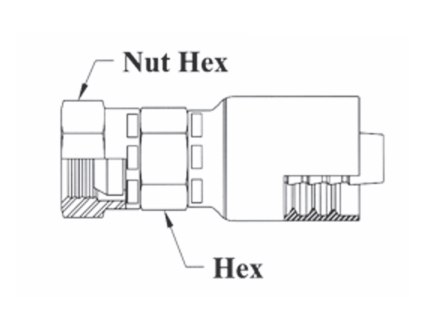

Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A05-4x4 1/4" 1/4" 1/4-18 9/16" 11/16" 1AA4SP4 04Z-054
A05-6x6 3/8" 3/8" 3/8-18 11/16" 7/8" 1AA6SP6 06Z-056
A05-6x8 3/8" 1/2" 1/2-14 3/4" 1" - 06Z-058
A05-8x8 1/2" 1/2" 1/2-14 7/8" 1" 1AA8SP8 08Z-058
A05-12x12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1AA12SP12 12Z-062
A05-16x16 1" 1" 1/11-1/2 1-3/8" 1-1/2" 1AA16SP16 16Z-066

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
