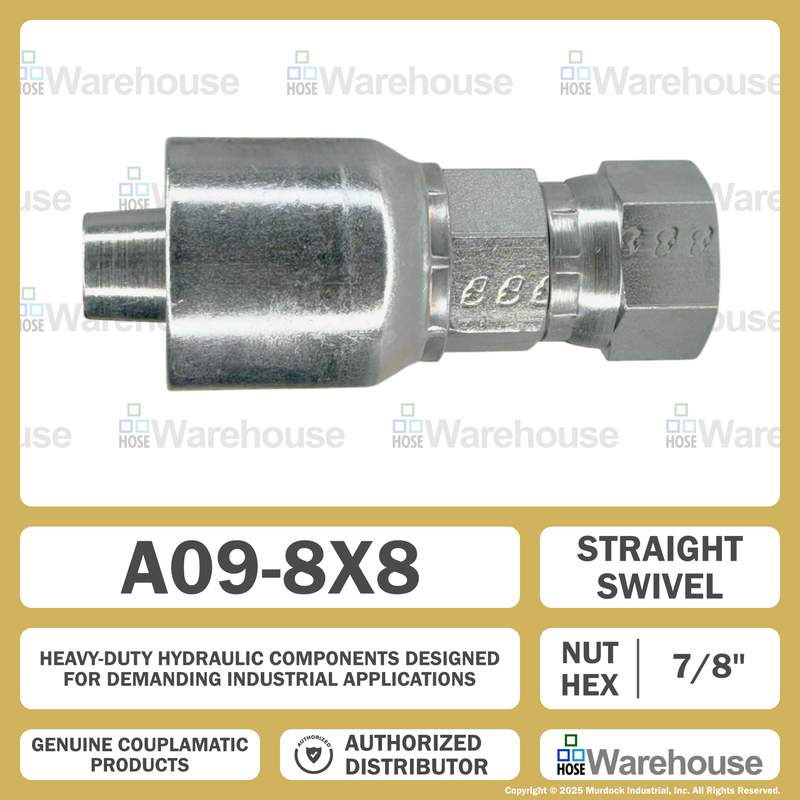

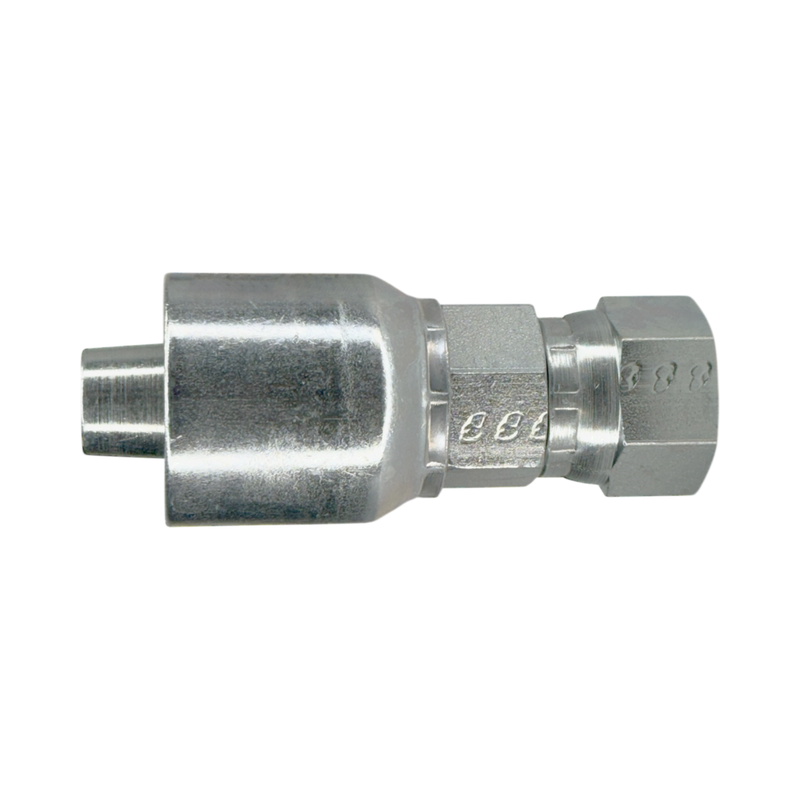

A09-8x8 Couplamatic A Series Coupling - JIC 37° - Female Swivel - 1/2" Hose ID - 3/4x16 Thread

A09-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/4x16 Thread JIC 37° Female Swivel | Straight

Save $0.72 Save $0.72
$6.46
$6.46 - $6.46
$6.46
$5.74
$5.74 - $5.74
$5.74

Couplamatic Systems Inc.
A Series - JIC 37° - Female Swivel
Specifications for Variant SKU: A09-8x8 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A09-4x4 1/4" 7/16x20 1/4" 9/16" 9/16" 1AA4FJ4 04Z-604
A09-4x5 1/4" 1/2x20 5/16" 9/16" 5/8" 1AA5FJ4 04Z-605
A09-4x6 1/4" 9/16x18 3/8" 9/16" 11/16" 1AA6FJ4 04Z-606
A09-6x4 3/8" 7/16x20 1/4" 11/16" 9/16" 1AA4FJ6 06Z-604
A09-6x6 3/8" 9/16x18 3/8" 11/16" 11/16" 1AA6FJ6 06Z-606
A09-6x8 3/8" 3/4x16 1/2" 11/16" 7/8" 1AA8FJ6 06Z-608
A09-6x10 3/8" 7/8x14 5/8" 7/8" 1" 1AA10FJ6 06Z-610
A09-8x6 1/2" 9/16x18 3/8" 7/8" 11/16" 1AA6FJ8 08Z-606
A09-8x8 1/2" 3/4x16 1/2" 7/8" 7/8" 1AA8FJ8 08Z-608
A09-8x10 1/2" 7/8x14 5/8" 7/8" 1" 1AA10FJ8 08Z-610
A09-8x12 1/2" 1-1/16x12 3/4" 1-1/8" 1-1/4" 1AA12FJ8 08Z-612
A09-10x10 5/8" 7/8x14 5/8" 15/16" 1" 1AA10FJ10 10Z-610
A09-10x12 5/8" 1-1/16x12 3/4" 1-1/8" 1-1/4" 1AA12FJ10 10Z-612
A09-12x10 3/4" 7/8x14 5/8" 1-1/16" 1" 1AA10FJ12 12Z-610
A09-12x12 3/4" 1-1/16x12 3/4" 1-1/8" 1-1/4" 1AA12FJ12 12Z-612
A09-12x16 3/4" 1-5/16x12 1" 1-3/8" 1-1/2" 1AA16FJ12 12Z-616
A09-16x12 1" 1-1/16x12 3/4" 1-3/8" 1-1/4" 1AA12FJ16 -
A09-16x16 1" 1-5/16x12 1" 1-3/8" 1-1/2" 1AA16FJ16 16Z-616
A09-16x20 1" 1-5/8x12 1-1/4" 1-11/16" 2" 1AA20FJ16 16Z-620
A09-20x20 1-1/4" 1-5/8x12 1-1/4" 1-11/16" 2" 1AV20FJ20 20Z-620

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
