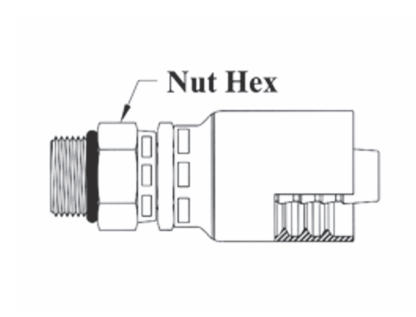

A12-6x8 Couplamatic A Series Coupling - ORB - Male Swivel - 3/8" Hose ID - 3/4x16 Thread

A12-6x8 by Couplamatic | A Series Coupling | 3/8" Hose ID x 3/4x16 Thread ORB Male Swivel | Straight

Save $4.81 Save $4.81
$12.03
$12.03 - $12.03
$12.03
$7.22
$7.22 - $7.22
$7.22

Couplamatic Systems Inc.
A Series - ORB - Male Swivel
Specifications for Variant SKU: A12-6x8 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Boss, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A12-4x4 1/4" 7/16x20 1/4" 5/8" 1AA4SB4 04Z-R04
A12-6x6 3/8" 9/16x18 3/8" 3/4" 1AA6SB6 06Z-R06
A12-6x8 3/8" 3/4x16 1/2" 7/8" 1AA8SB6 06Z-R08
A12-8x8 1/2" 3/4x16 1/2" 7/8" 1AA8SB8 08Z-R08
A12-8x10 1/2" 7/8x14 5/8" 1" 1AA10SB8 08Z-R10

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
