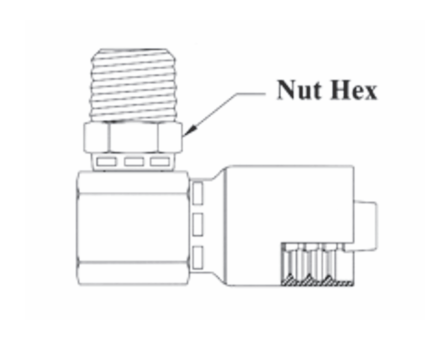

A14-6x8 Couplamatic A Series Coupling - NPTF - Male Swivel 90° - 3/8" Hose ID - 1/2-14 Thread

A14-6x8 by Couplamatic | A Series Coupling | 3/8" Hose ID x 1/2-14 Thread Male Swivel NPTF | 90° Elbow

Save $1.80 Save $1.80
$16.23
$16.23 - $16.23
$16.23
$14.43
$14.43 - $14.43
$14.43

Couplamatic Systems Inc.
A Series - NPTF - Male Swivel 90°
Specifications for Variant SKU: A14-6x8 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male NPTF, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A14-4x4 1/4" 1/4" 1/4-18 5/8" 1AA4PSB4 04Z-MO4
A14-6x6 3/8" 3/8" 3/8-18 3/4" 1AA6PSB6 06Z-M06
A14-6x8 3/8" 1/2" 1/2-14 7/8" - -
A14-8x8 1/2" 1/2" 1/2-14 7/8" 1AA8PSB8 08Z-M08

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

- Swivel for installation purposes only. Leakage may occur at low pressure.
