A15-8x10 Couplamatic A Series Coupling - ORB - Male Swivel 90° - 1/2" Hose ID - 7/8x14 Thread

A15-8x10 by Couplamatic | A Series Coupling | 1/2" Hose ID x 7/8x14 Thread ORB Male Swivel | 90° Elbow

Name: A15-8x10 by Couplamatic | A Series Coupling | 1/2" Hose ID x 7/8x14 Thread ORB Male Swivel | 90° Elbow
Brand: Couplamatic
SKU: A15-8x10 Couplamatic
Price: 16.89 USD
Availability: InStock

Save $11.26

$28.15

$28.15 - $28.15

$28.15

$16.89

$16.89 - $16.89

$16.89

Couplamatic Systems Inc.
A Series - ORB - Male Swivel 90°

Specifications for Variant SKU: A15-8x10 Couplamatic
Series:	A Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Male O-Ring Boss, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| 2SK Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| JH Series \| JH2 Series

Description:
A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

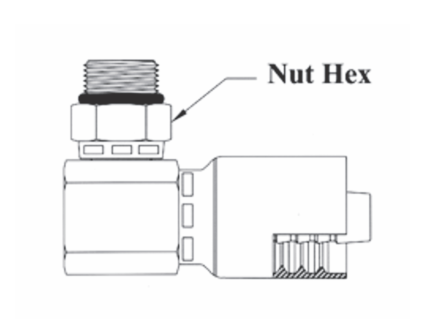

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Aeroquip TTC	Weatherhead Z
A15-6x6	3/8"	9/16x18	3/8"	3/4"	1AA6SBB6	06Z-R66
A15-6x8	3/8"	3/4x16	1/2"	7/8"	1AA8SBB6	06Z-R68
A15-8x8	1/2"	3/4x16	1/2"	7/8"	1AA8SBB8	08Z-R68
A15-8x10	1/2"	7/8x14	5/8"	1"	1AA10SBB8	08Z-R70

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
