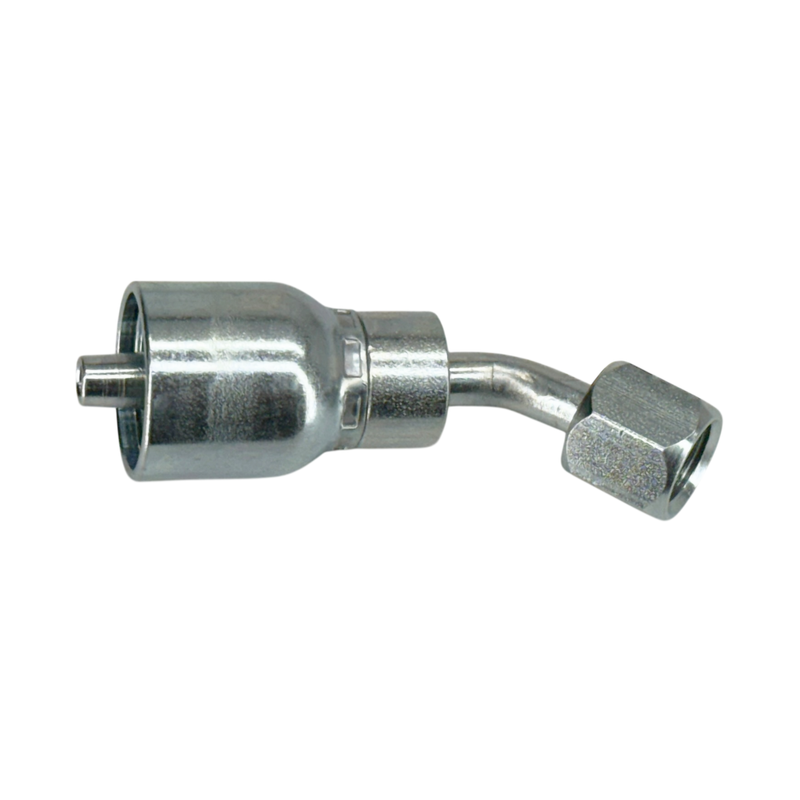

A25-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 45° Elbow
A25-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 45° Elbow
A25-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 45° Elbow
A25-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 45° Elbow
A25-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 45° Elbow
A25-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 45° Elbow
A25-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 45° Elbow
A25-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 45° Elbow

A25-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 45° Elbow

Save $6.33 Save $6.33
$15.83
$15.83 - $15.83
$15.83
$9.50
$9.50 - $9.50
$9.50

Couplamatic Systems Inc.
A Series - JIC/SAE Dual Seat - 45° Female Swivel
Specifications for Variant SKU: A25-6x6 Couplamatic
Series: A Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female JIC, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

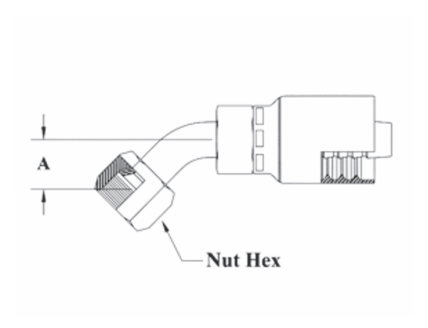

Part Number Hose ID Thread Size Tube OD A - Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A25-4x4 1/4" 7/16x20 1/4" 0.47" 9/16" 1AA4FJA4a 04Z-684
A25-4x5 1/4" 1/2x20 5/16" 0.53" 5/8" 1AA5FJA4 04Z-685
A25-4x6* 1/4" 9/16x18 3/8" 0.59" 11/16" 1AA6FJA4 04Z-686
A25-6x4 3/8" 7/16x20 1/4" 0.47" 9/16" - 06Z-684
A25-6x6* 3/8" 9/16x18 3/8" 0.59" 11/16" 1AA6FJA6 06Z-686
A25-6x8 3/8" 3/4x16 1/2" 0.71" 7/8" 1AA8FJA6a 06Z-688
A25-8x8 1/2" 3/4x16 1/2" 0.71" 7/8" 1AA8FJA8 08Z-688
A25-8x10 1/2" 7/8x14 5/8" 0.84" 1" 1AA10FJA8a 08Z-690
A25-10x10 5/8" 7/8x14 5/8" 0.68" 1" 1AA10FJA10a 10Z-690
A25-10x12* 5/8" 1-1/16x12 3/4" 0.78" 1-1/4" - 10Z-692
A25-12x12* 3/4" 1-1/16x12 3/4" 1.12" 1-1/4" 1AA12FJA12 12Z-692
A25-16x16* 1" 1-5/16x12 1" 1.15" 1-1/2" 1AA16FJA16 16Z-696
A25-20x20 1-1/4" 1-5/8x12 1-1/4" 1.69" 2" 1AV20FJA20 20Z-697

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
